• Commercial LED Vandal Proof

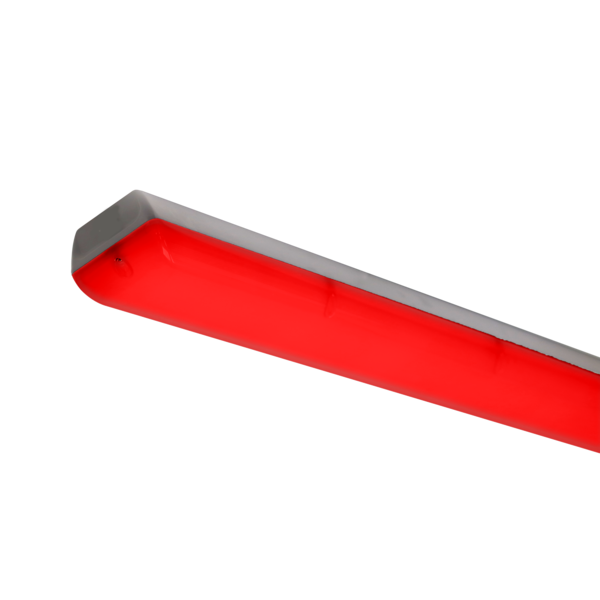

Grandlux Multi-colour

LED Vandal Proof

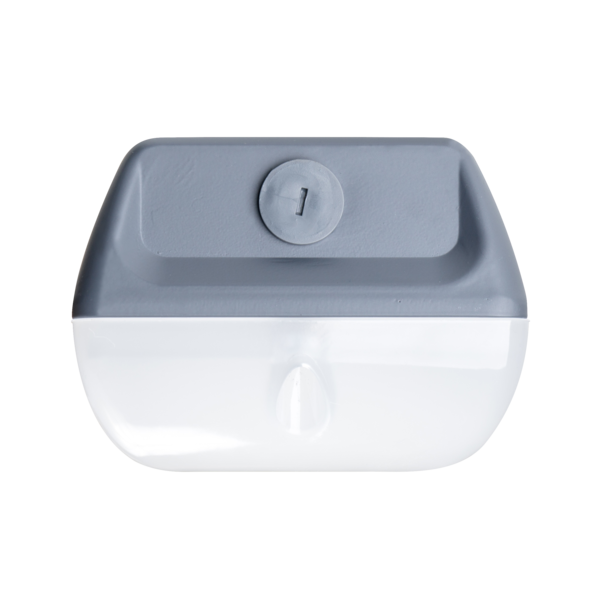

Introducing Grandlux. A die-cast aluminium vandalproof LED luminaire designed to withstand the toughest Australian conditions.

NATA certified test reports available for IP66 ingress protection and IK10 impact protection rating. Available in both 2ft and 4ft. The Grandlux range includes Emergency, Integrated night light, In-built motion sensor and Multi-colour models.

Application

Designed in house with 40 reinforced internal rib supports offering exceptional strength and rigidity, the Grandlux vandalproof LED luminaire is capable of operating at temperatures of -30°C to 50°C

Applications: Correctional facilities, Mining facilities and specific areas in Industrial facilities

Design Specifications

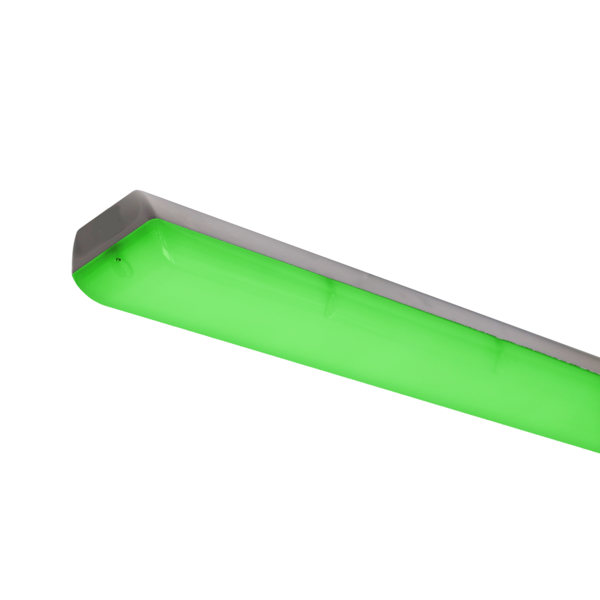

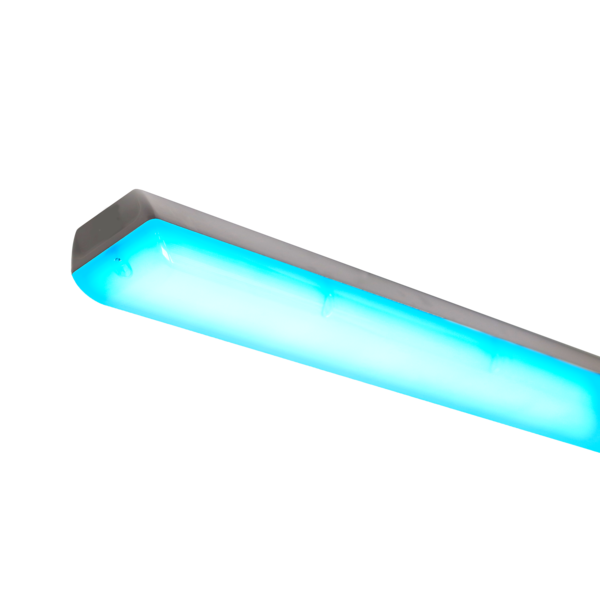

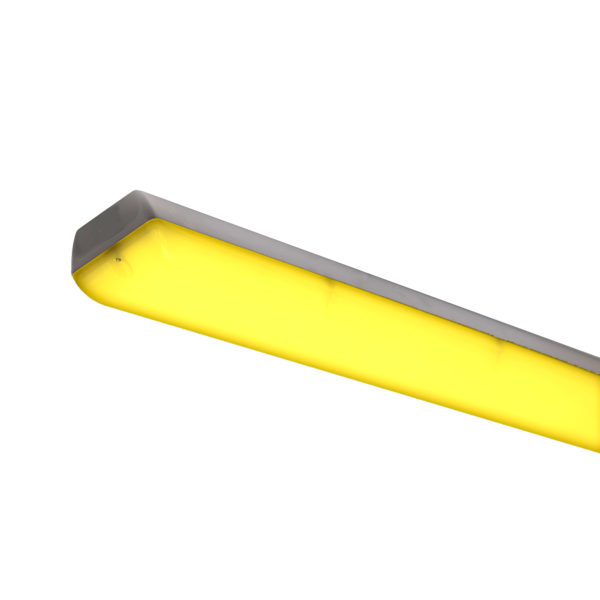

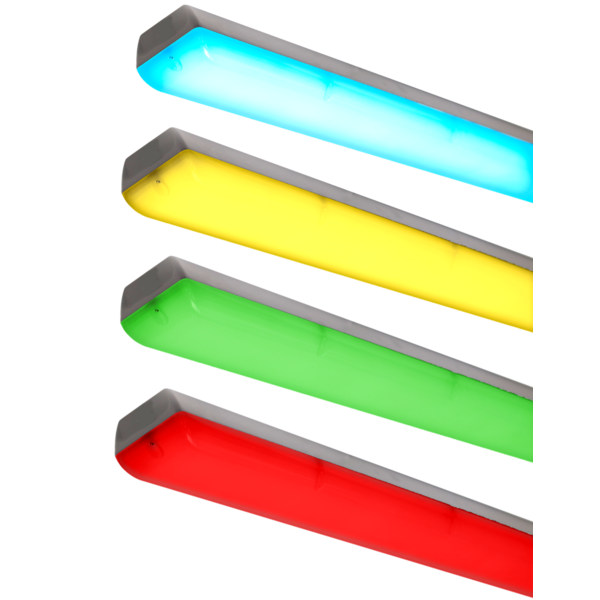

  • Available in two models Blue/Green and Amber/Red

  • High lumen output LED gear tray specifically designed to applications where coloured LED lighting solutions are required

    Die-cast aluminium body (dark grey RAL7015) supplied with high transmission opal diffuser with anti-tamper captive screws

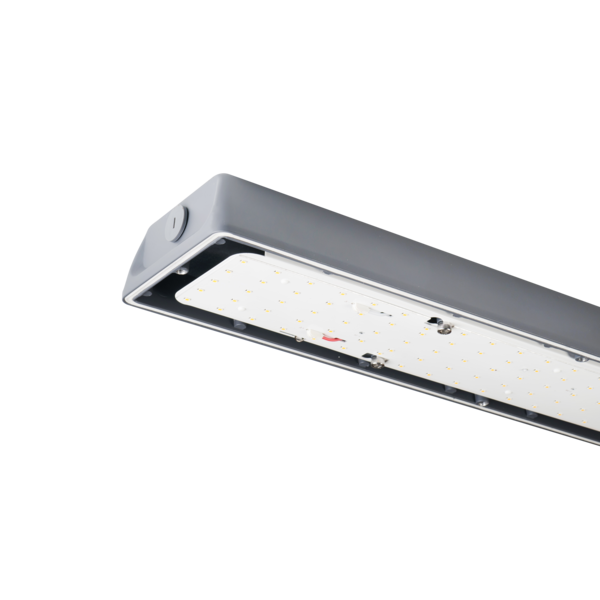

  • Removable LED gear tray, L90/B10 >50,000 hours, 10KV surge protection device fitted as standard

  • Terminal block to suit 6mm² cabling fitted as standard

    M20 cable gland supplied as standard

  • Accessories Available

    • Stainless steel suspension kit (CGXSSSK)
    • Surface mount bracket (CGXSMB)
    • Spigot adaptor plate (CGXOSB)

  • Available Options

    • High transmission clear diffuser
    • DALI control gear
    • Emergency (Add EM to end of code)
    • Torx Security Screws (Add TX to end of code)



    CLICK HERE: Read why Grandlux Vandal Proof LED Lighting Fixtures are Best in Class

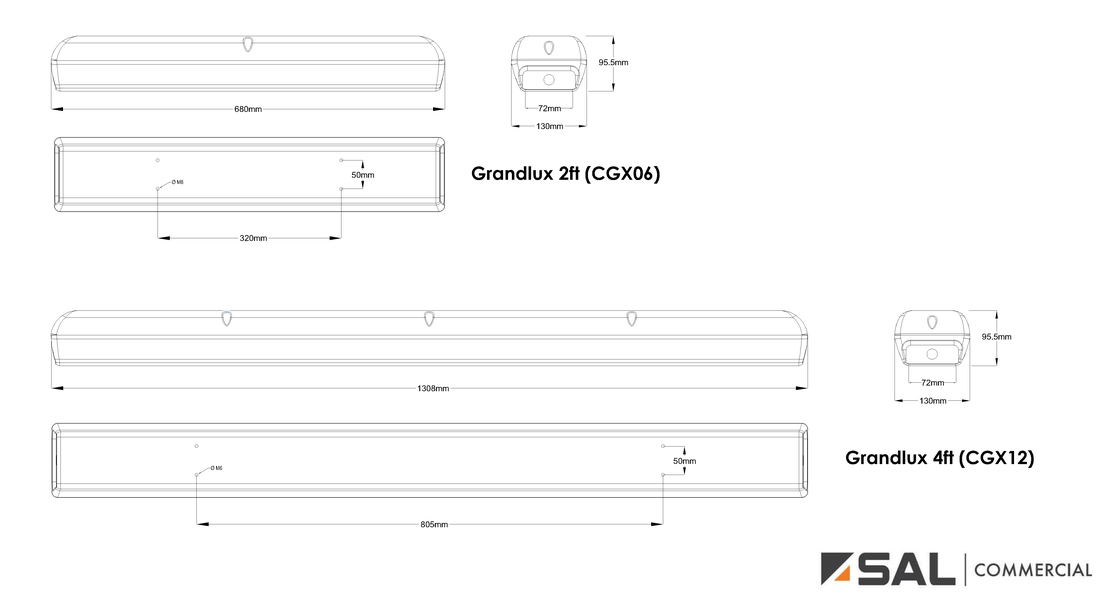

  • Dimensions - Wiring Diagrams
  • Design Options

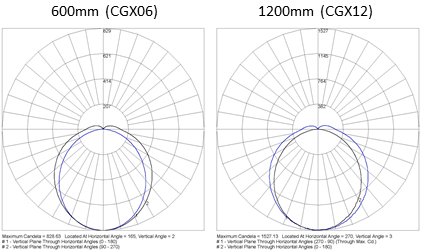

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.CGX0625BGN DescriptionDual Output IP66 IK10 Blue (450nm) / Green (520nm) LED vandalproof luminaire Power25 CRI80 Add to Enquiry Add Remove Remove
    Model No.CGX0625ARN DescriptionDual Output IP66 IK10 Amber (2200k) / Red (620nm) LED vandalproof luminaire Power25 CRI80 Add to Enquiry Add Remove Remove
    Model No.CGX1242BGN DescriptionDual Output IP66 IK10 Blue (450nm) / Green (520nm) LED vandalproof luminaire Power42 CRI80 Add to Enquiry Add Remove Remove
    Model No.CGX1242ARN DescriptionDual Output IP66 IK10 Amber (2200k) / Red (620nm) LED vandalproof luminaire Power42 CRI80 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
