Grandlux Tri-Colour Motion Sensor

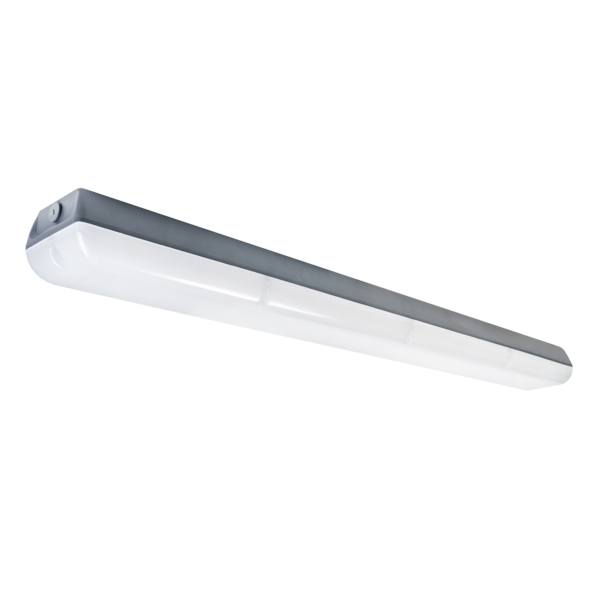

IP66 IK10 Die-Cast Aluminium Vandalproof Luminaire

Introducing the Grandlux IP66 IK10 LED Vandalproof, a robust and long-lasting luminaire designed to withstand the toughest conditions. With NATA certified test reports for IP66 ingress protection and IK10 impact protection rating, you can be confident in the luminaire's durability. Boasting a die-cast aluminum construction, anti-tamper screws and a toughened polycarbonate diffuser, the Grandlux is the perfect solution for those arduous environments, including correctional facilities, railway platforms, tunnels, maintenance pits, schools, public amenities, transport yards, and car parks.

The Grandlux luminaire is designed to provide reliable performance through a wide range of temperatures, from -30°C up to 50°C. It also comes with surge protection device to help keep your fittings safe from damage during a power outage. Available in both 2ft and 4ft, the Grandlux range includes Emergency, Integrated night light, In-built motion sensor and Multi-colour models.

For a luminaire that will stand up to the toughest conditions, and provide reliable performance, the Grandlux IP66 IK10 LED Vandalproof is the perfect choice.

Application

Designed for the most arduous environements with 40 re-inforced internal rib supports offering exceptional strength and rigidity, the Grandlux IP66 IK10 vandalproof LED luminaire is suitable for most hazardous locations

Suitable applications include - Correctional Facilities, Transport Tunnels, Railway Platforms, School Security & Walkways, Stairwells & Corridors, Maintenance Pits, Public Amenities, Public Carparks, Warhouse & Dock Yards

Design Specifications

  • Integrated Microwave Motion Sensor

  • > 120lm/w with Tri-Colour CCT (3000K / 4000K / 5700K)

  • Removable Gear Tray with L90/B10 >50,000 Hour LED Chips, 10KV Surge Protection Device & 6mm Terminal Block

  • Die-Cast Aluminium Body (Dark Grey RAL7015) with High Transmission Opal Diffuser & Captive Washers / Anti-Tamper Screws

  • Accessories Available

    • Stainless Steel Suspension Kit (CGXSSSK)
    • Hot Dipped Gal Surface Mount Kit (CGXSMB)
    • Hot Dipped Gal 34mm Diameter Spigot Pole Adaptor (CGXOSB)
    • Hot Dipped Gal Rod Suspension Kit (CGXRSB)

  • Available Options

    • Integral DALI2 Driver
    • Integral Emergency
    • Integral Microwave Motion Sensor (On / Off)
    • Integral Advanced Motion Sensor (Corridor Function)
    • Night Light
    • Clear Diffuser
    • Security Torx Screws



    CLICK HERE: Read why Grandlux Vandal Proof LED Lighting Fixtures are Best in Class


  • 3000KCCT
  • 4000KCCT
  • 5700KCCT
  • 3000KCCT
  • 4000KCCT
  • 5700KCCT

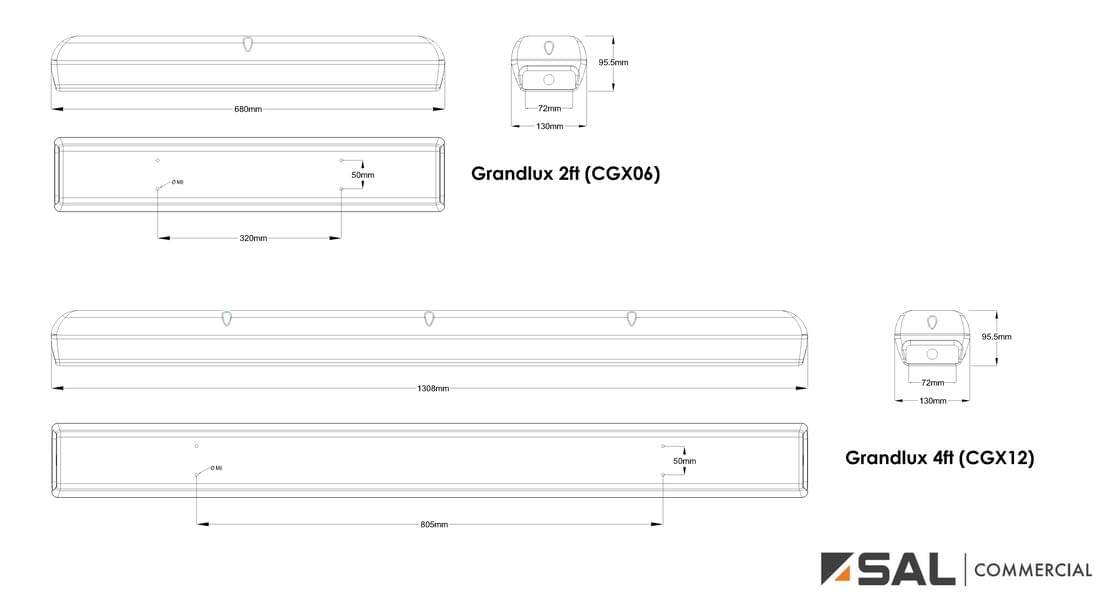

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Colour Temp. CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.CGX0640TCNMS DescriptionDual Power 40w / 25w, Tri-Colour, Microwave Motion Sensor (on / off), Opal Diffuser Power40 Lumens4800 CCT3000/4000/5700 Colour Temp.3000 CRI80 Add to Enquiry Add Remove Remove
    Model No.CGX1260TCNMS DescriptionDual Power 60w / 40w, Tri-Colour, Microwave Sensor (on / off), Opal Diffuser Power60 Lumens7200 CCT3000/4000/5700 Colour Temp.3000 CRI80 Add to Enquiry Add Remove Remove
    Model No.CGX0640TCAMS DescriptionDual Power 40w / 25w, Tri-Colour, Advanced Motion Sensor (Corridor Function), Opal Diffuser Power40 Lumens4800 CCT3000/4000/5700 Colour Temp.3000 CRI80 Add to Enquiry Add Remove Remove
    Model No.CGX1260TCAMS DescriptionDual Power 60w / 40w, Tri-Colour, Advanced Motion Sensor (Corridor Function), Opal Diffuser Power60 Lumens7200 CCT3000/4000/5700 Colour Temp.3000 CRI80 Add to Enquiry Add Remove Remove

    Note: Lumens (lm) Shown are Delivered @ Full Power - 4000K

    Code Methodology:

    Prefix: CGX

    Length: 06 = 600mm / 12 = 1200mm

    Output (w): 40 = 600mm / 60 = 1200mm

    CCT: TC = Tri-Colour (3000K / 4000K / 5700K)

    Driver: N = Non-Dim / D = DALI2

    Emergency: EM = Emergency / DEM = DALI Emergency

    Diffuser: *Opal is default as standard / C = Clear

    Motion Sensor: NMS (Microwave Sensor) / AMS (Advanced Motion Sensor - Corridor Function)

    Security Screw: TX = Torx Screw

    Product Examples: CGX0640TCDCAMS - Grandlux 600mm - DALI2, Clear Diffuser, Advance Motion Sensor / CGX1260TCNNMS - Grandlux 1200mm - Non-Dim, Motion Sensor
