• Commercial LED Downlights

Glenelg

Commercial IP65 LED Downlight

The IP65 LED recessed downlight adopts super slim and compact design, suitable for narrow ceiling installations. The IP65 rating front cover design ensures suitability for damp environments. T-shaped heat sinks greatly increases the radiation area and improves cooling efficiency. Available in three sizes and a range of lumen packages.

Application

Offering IP65 ingress protection and a traditional diamond plated reflector design ensuring the highest efficacy possible whilst maintaining a uniform light output. Suited to general commercial and retail applications for bathrooms and wet areas.

Design Specifications

  • IP65 recessed downlight

  • 60º optic, CRI90 as standard

  • White trim

  • Lifetime - 50,000 hours

  • Phase dimmable driver as standard

  • Available Options

    • 2700K, 3000K
    • Optics: 36°
    • Black trim
    • DALI dimmable driver (Note not available for 5w Model)

  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options

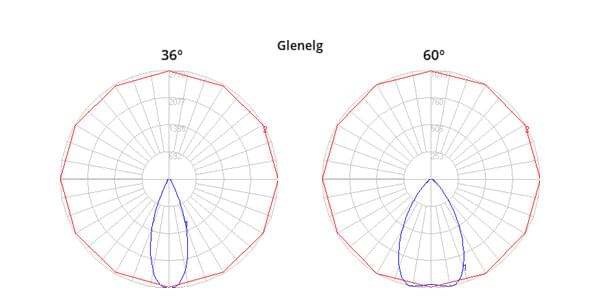

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.XGL080540P DescriptionIP65 recessed downlight, 5W, 4000K, 60°, white trim, Phase Dimmable Power5 Lumens370 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove
    Model No.XGL080840P DescriptionIP65 recessed downlight, 8W, 4000K, 60°, white trim, Phase Dimmable Power8 Lumens620 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove
    Model No.XGL091040P DescriptionIP65 recessed downlight, 10W, 4000K, 60°, white trim, Phase Dimmable Power10 Lumens750 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove
    Model No.XGL111040P DescriptionIP65 recessed downlight, 10W, 4000K, 60°, white trim, Phase dimmable Power10 Lumens750 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove
    Model No.XGL111340P DescriptionIP65 recessed downlight, 13W, 4000K, 60°, white trim, Phase Dimmable Power13 Lumens1010 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove

    Code Methodology: XGL08 = Size  |  10 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour  |  36 = Beam angle
    Variants Available:
    Size (overall) - 08 (80mm) / 09 (90mm) / 11 (110mm)
    Wattage - 05 / 08 / 10 / 13
    CCT - 27 = 2700K / 30 = 3000K / 40 = 4000K
    Dimming type - N = Non Dim / D = DALI
    Trim Colour - WH = White (standard) / BK = Black
    Beam Angle (60° nominated as standard) - 36 = 36 degree

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
