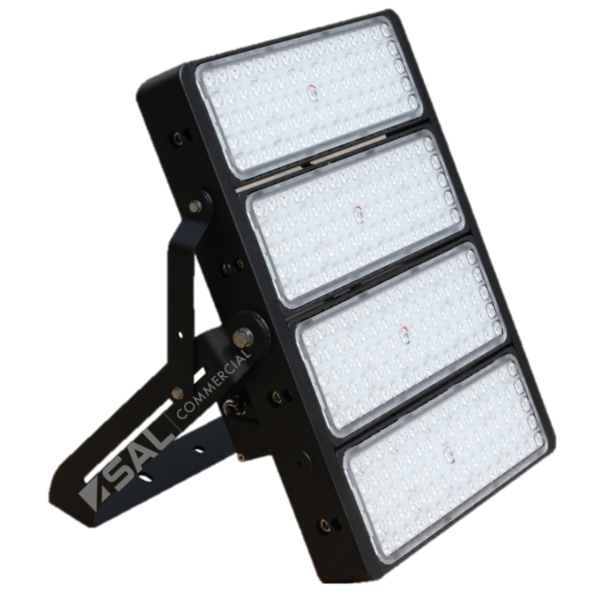

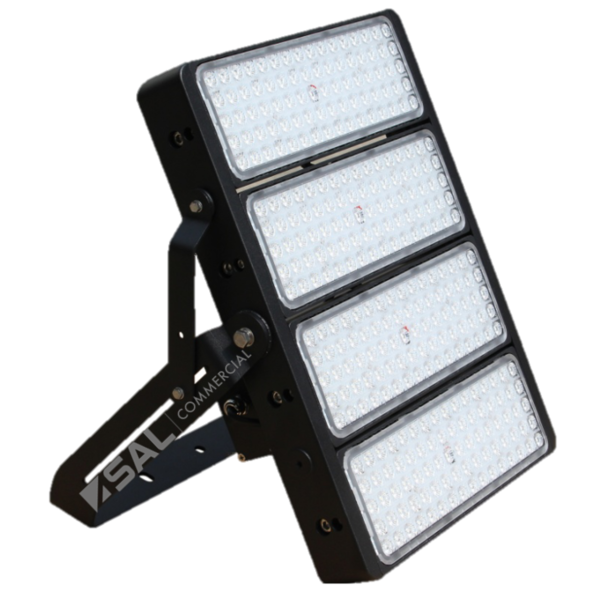

AUSTIN 400

IP65 Asymmetric or Symmetric LED Floodlight

Introducing the Austin LED commercial floodlight range

A trunnion mounted general purpose floodlight offering an IP65 rating and the capability to withstand operating conditions of -40° to +40°

Application

Available in a wide range of wattages and beam optics, the Austin LED floodlight range is suited to:

♦ Industrial area lighting

♦ Commercial applications

♦ General purpose floodlight applications

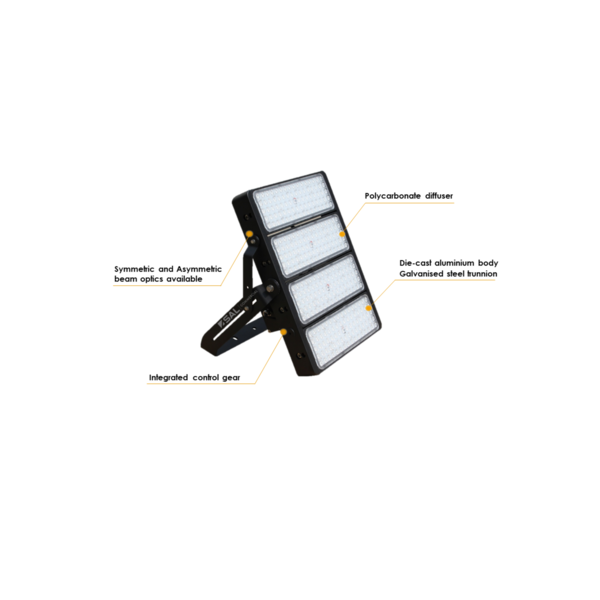

Design Specifications

  • Die-cast aluminium body with a galvanised steel trunnion arm powder coated in black

  • Available in both 400w in 8 distribution types - both symmetric and asymmetric

  • High efficacy >160lm/w in 5000K as standard, 4000K and 6500K available upon request

  • UV stabilised polycarbonate diffuser, CRI70 as standard

  • Integrated control gear, fixed output as standard

  • Available Options

    • 1-10v & DALI dimming models
    • CRI 80
    • 4000K, 6500K CCT
    • Anti-corrosive finish
    • Stainless steel bracket
    • Custom powdercoat finish colour

  • 4000KCCT
  • 5000KCCT
  • 6000KCCT
  • 4000KCCT
  • 5000KCCT
  • 6000KCCT

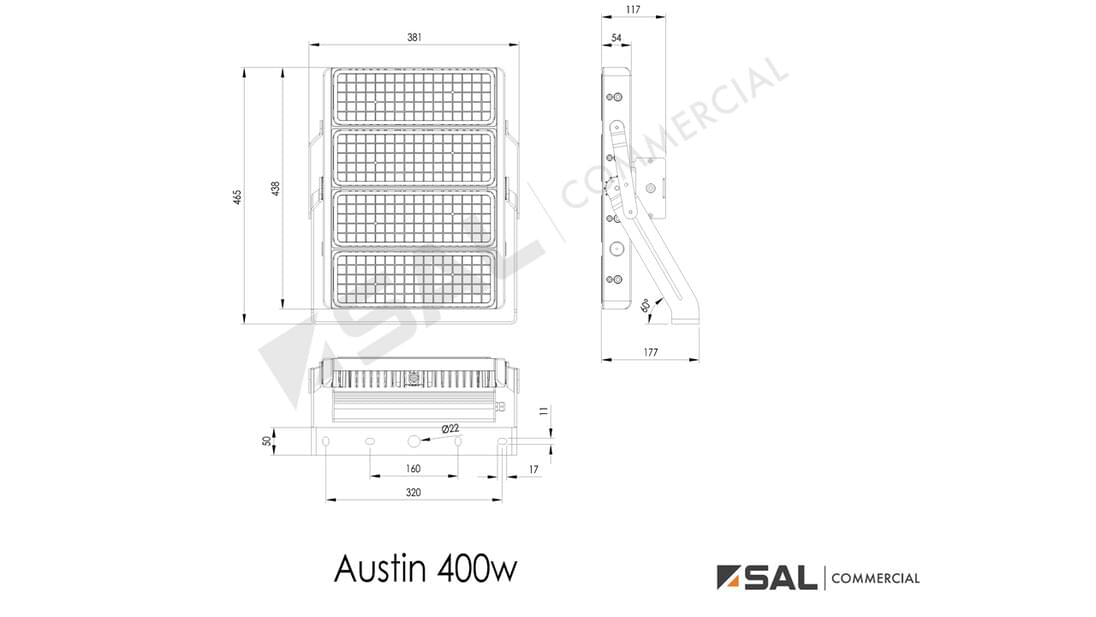

  • Dimensions - Wiring Diagrams
  • Design Options

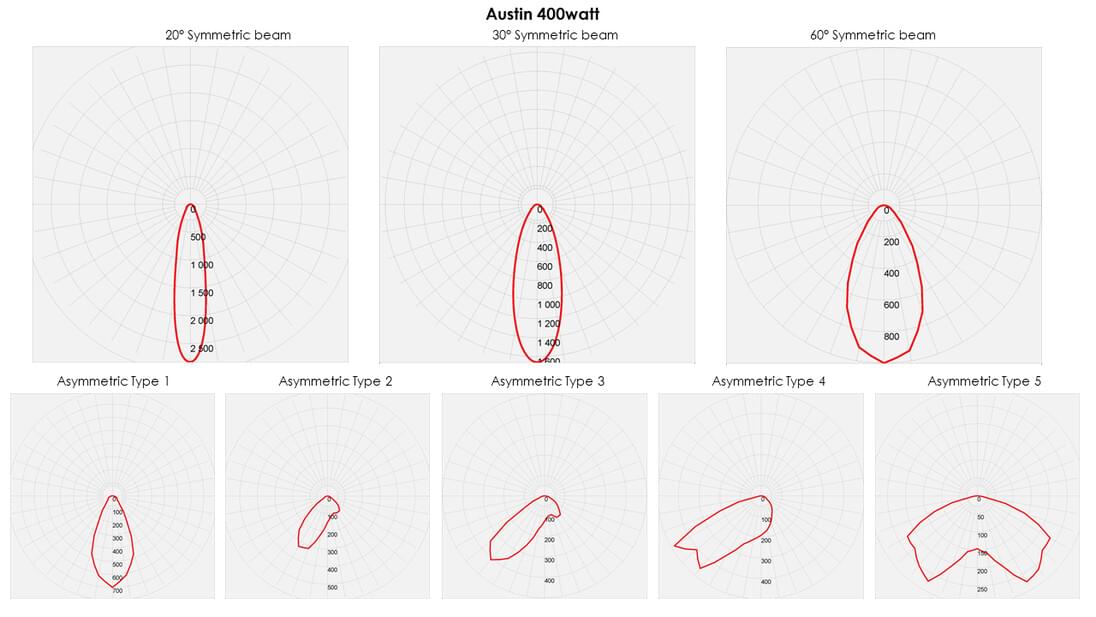

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT CRI Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FAN40050NS1 DescriptionTrunnion mount LED floodlight 20° deg symmetrical optic Power400 Lumens69000 CCT5000 CRI70 Mass12.6 Add to Enquiry Add Remove Remove
    Model No.FAN40050NS2 DescriptionTrunnion mount LED floodlight 30° deg symmetrical optic Power400 Lumens72000 CCT5000 CRI70 Mass12.6 Add to Enquiry Add Remove Remove
    Model No.FAN40050NS3 DescriptionTrunnion mount LED floodlight 60° deg symmetrical optic Power400 Lumens71000 CCT5000 CRI70 Mass12.6 Add to Enquiry Add Remove Remove
    Model No.FAN40050NT1 DescriptionTrunnion mount LED floodlight type 1 asymmetrical optic Power400 Lumens71000 CCT5000 CRI70 Mass12.6 Add to Enquiry Add Remove Remove
    Model No.FAN40050NT2 DescriptionTrunnion mount LED floodlight type 2 asymmetrical optic Power400 Lumens73000 CCT5000 CRI70 Mass12.6 Add to Enquiry Add Remove Remove
    Model No.FAN40050NT3 DescriptionTrunnion mount LED floodlight type 3 asymmetrical optic Power400 Lumens72000 CCT5000 CRI70 Mass12.6 Add to Enquiry Add Remove Remove
    Model No.FAN40050NT4 DescriptionTrunnion mount LED floodlight type 4 asymmetrical optic Power400 Lumens71000 CCT5000 CRI70 Mass12.6 Add to Enquiry Add Remove Remove
    Model No.FAN40050NT5 DescriptionTrunnion mount LED floodlight type 5 asymmetrical optic Power400 Lumens72000 CCT5000 CRI70 Mass12.6 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
