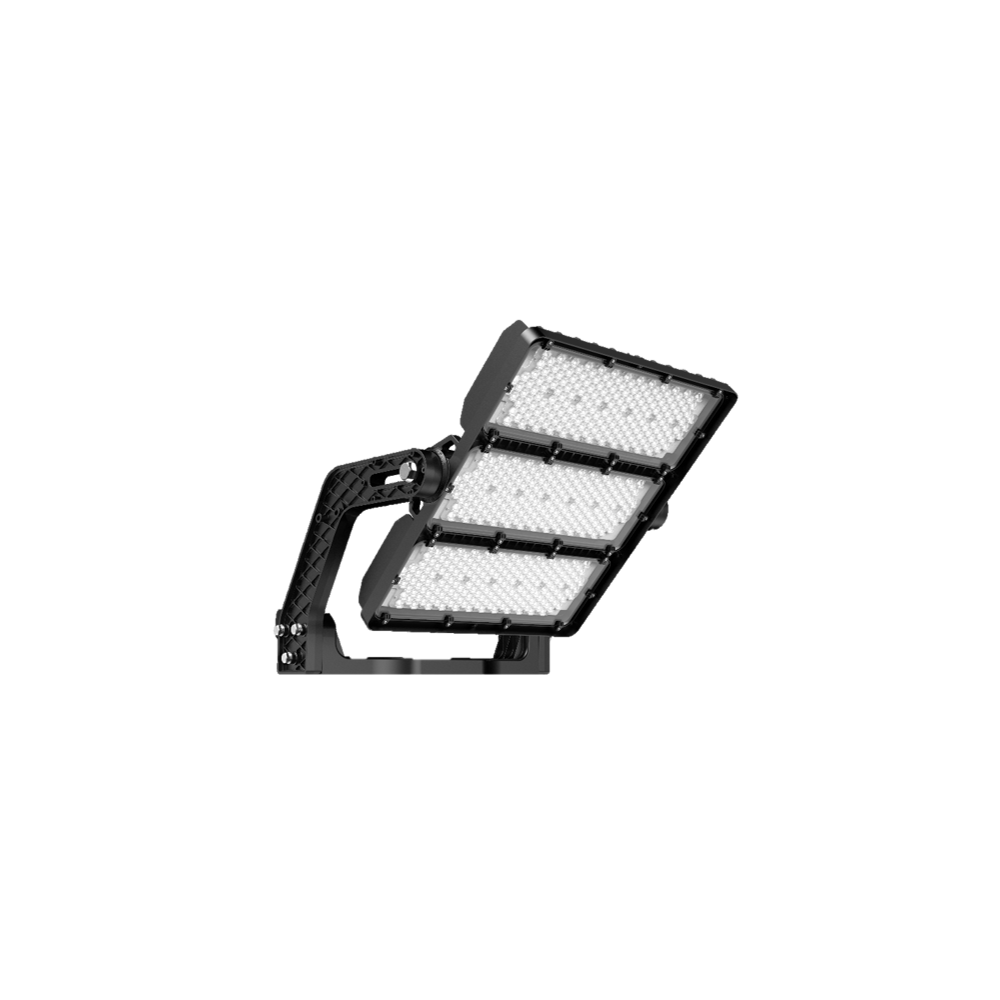

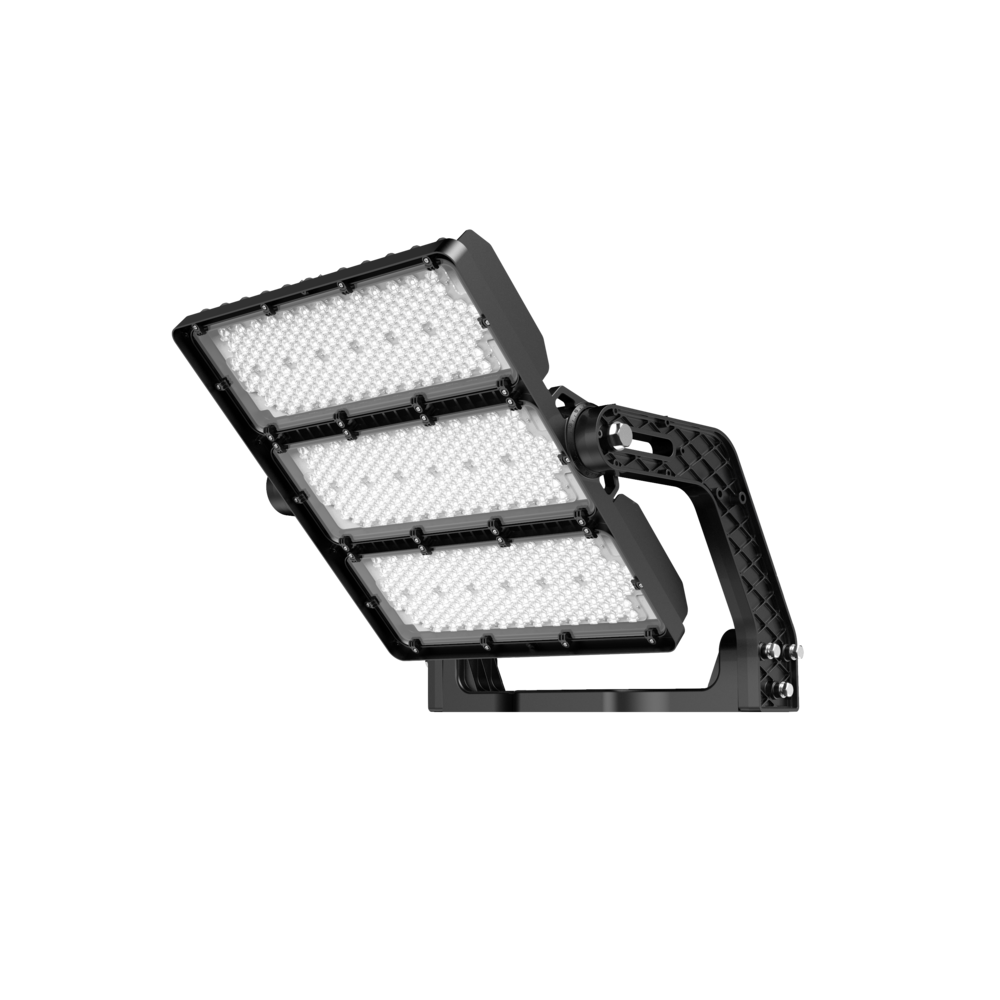

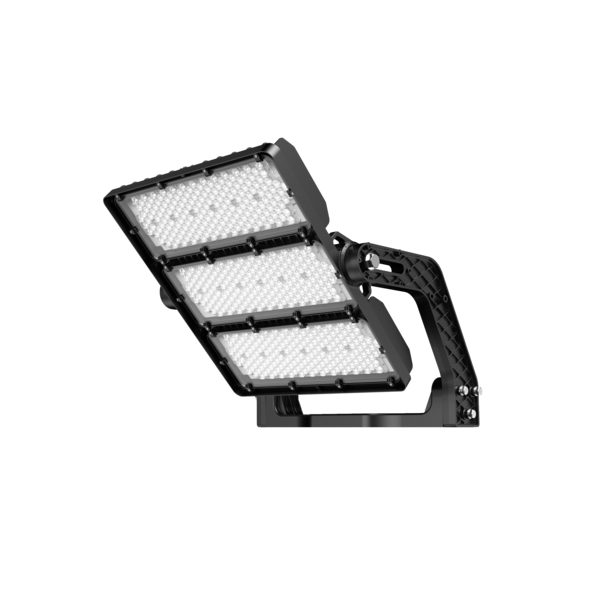

Barcelona Sports LED Floodlight
1000W | 1200W
Combining the latest in LED technology and precision designed optics, the Barcelona Sports LED Floodlight has been developed for sports applications. Constructed using pressure die-cast aluminium, this highly efficient floodlight allows for both trunnion, remote and in-pole gear tray mounting arrangements offering flexible installation options.
Application
Designed with IP66 ingress protection, IK08 impact protection rating and birdproof cabling, the Barcelona LED Sports Floodlight range is designed to withstand harsh Australian conditions and has been developed to operate at temperatures from -30° to 40°.
Suited to recreational sporting applications:
♦ Soccer
♦ Rugby
♦ Tennis
♦ Outdoor recreational sports
Design Specifications

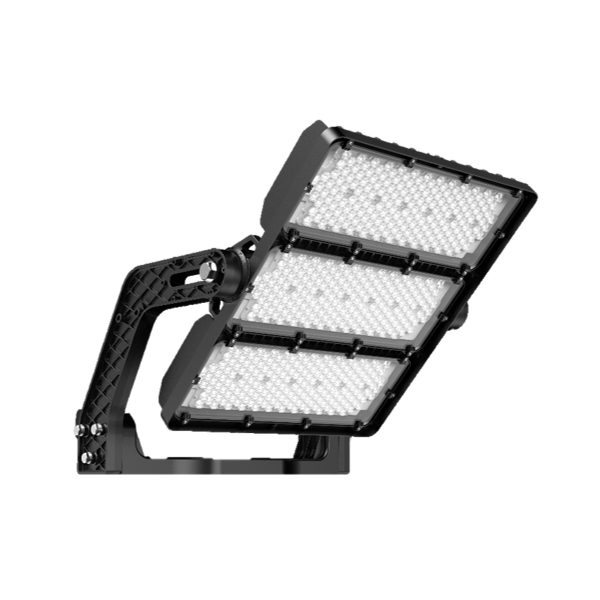

Available in 1000W and 1200W three module arrangement
160lm/w efficacy
UV stabilised polycarbonate lens with toughened glass screen
Operating temperature -30° to 40°
Windage rating 0.09m²
Available Options:
- Select from in-pole, trunion mount or remote IP66 control gear *Please note remote gear is standard
- DMX control gear
- Three phase 415V control gear (Non-Dim)
- Rear glare shield
- Front visor

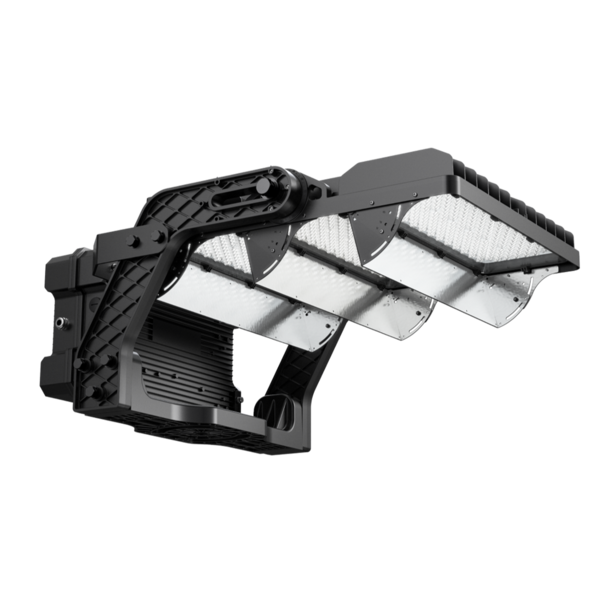

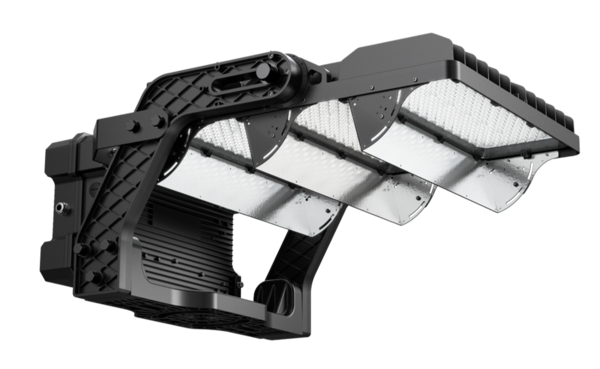

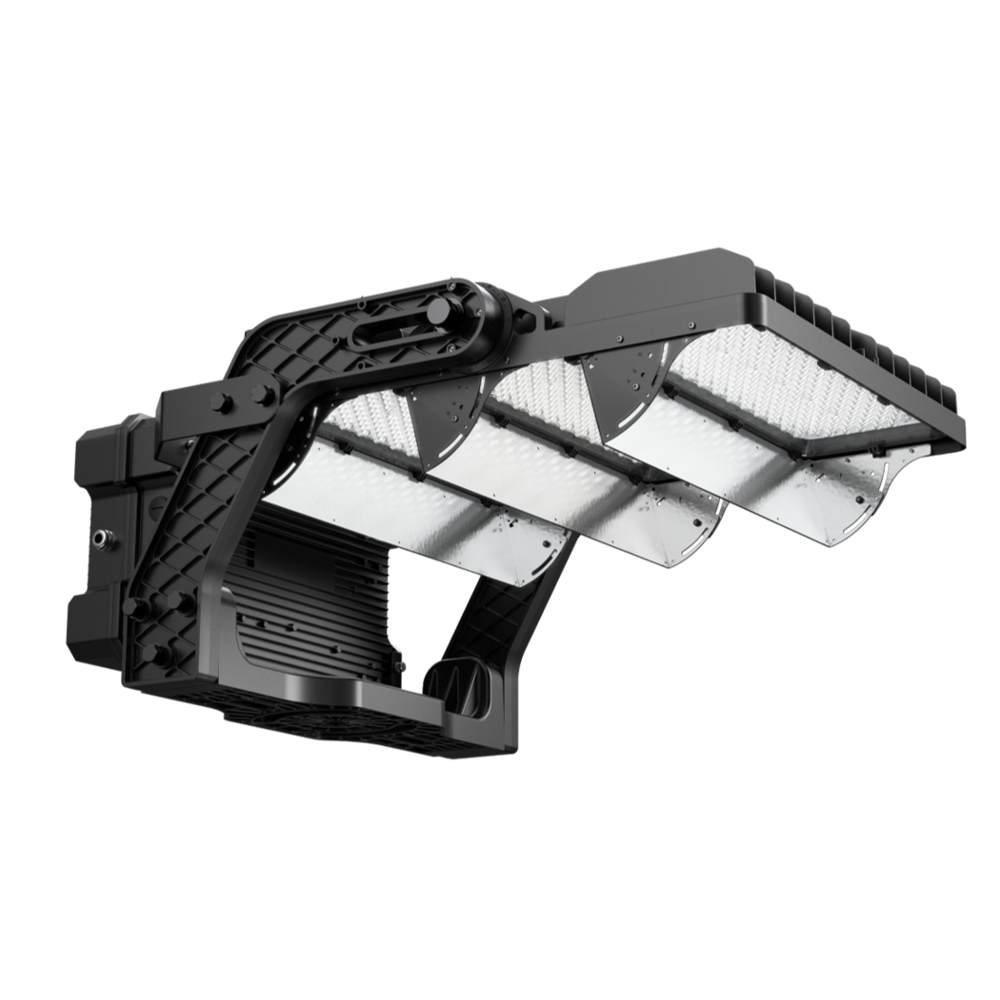

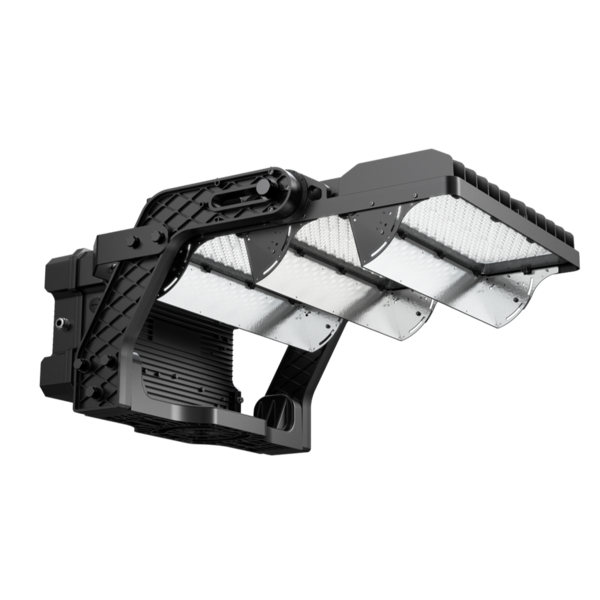

Adjustable rear glare shield accessory shown. Available for all Barcelona Sports LED Floodlight models.

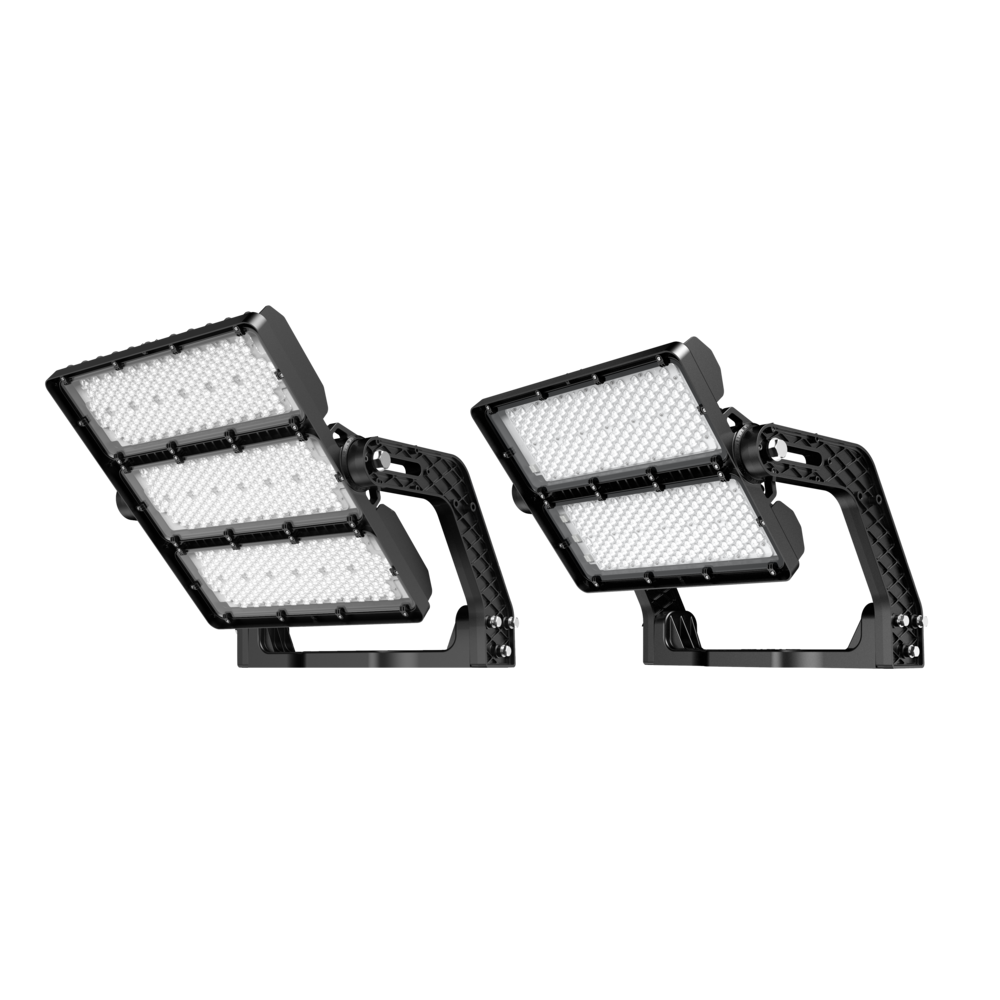

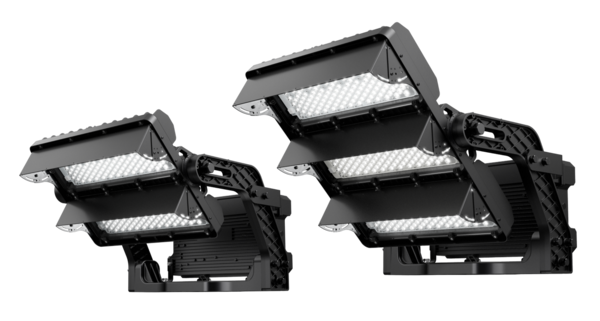

Adjustable front visor shown on both twin and three module models of the Barcelona Sports LED Floodlight.

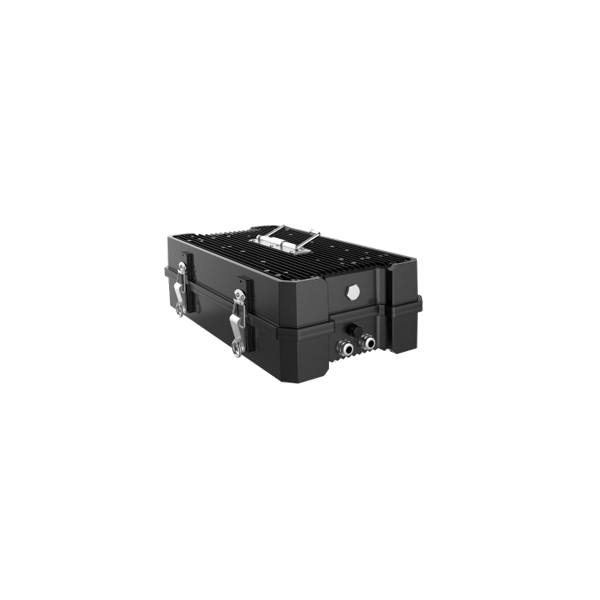

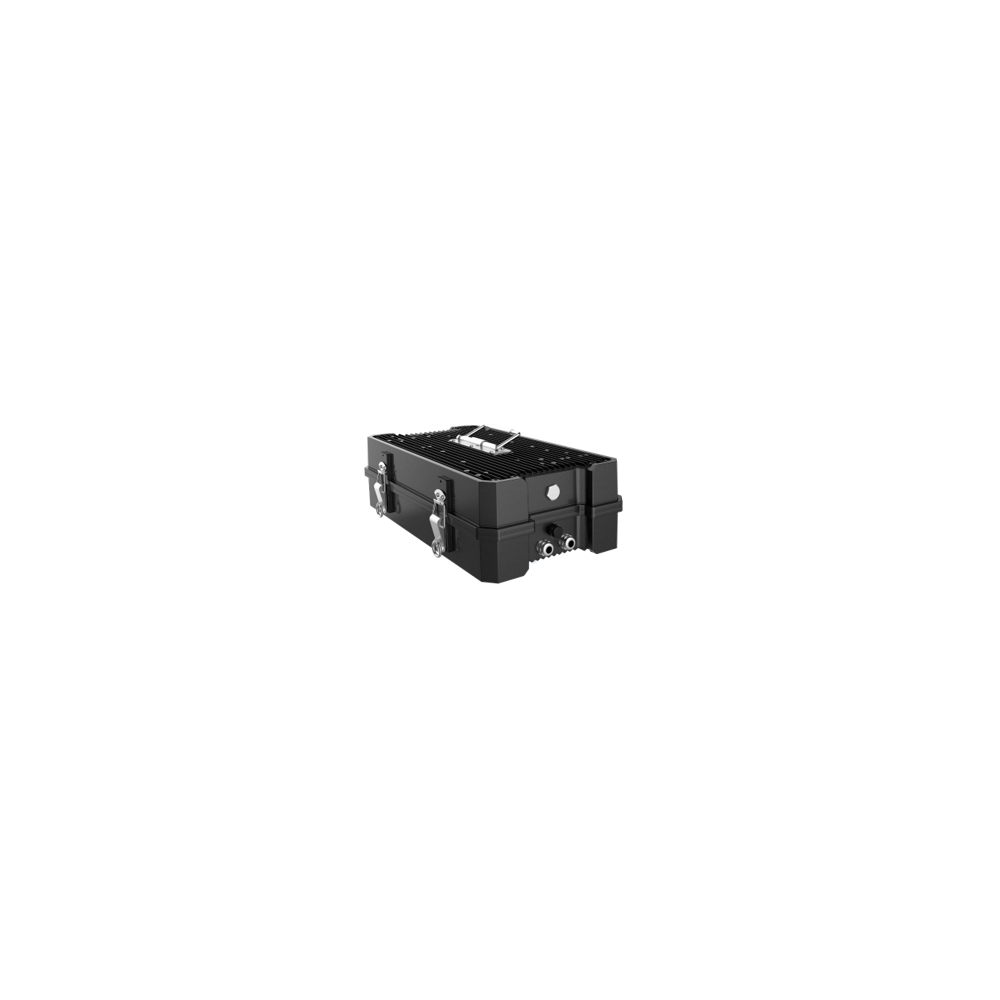

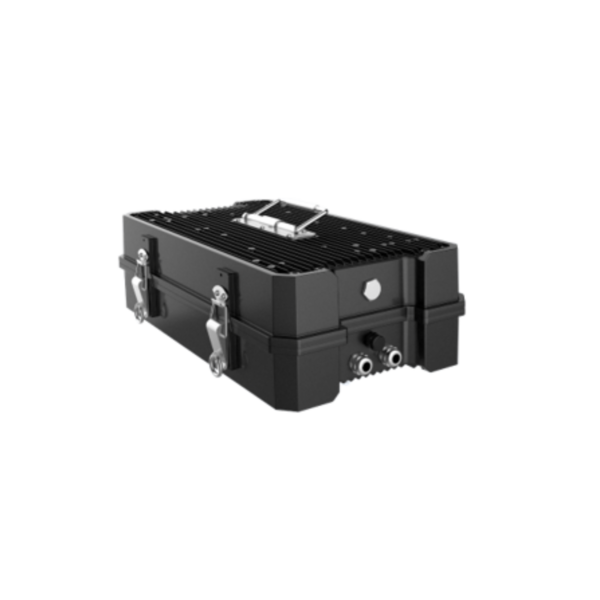

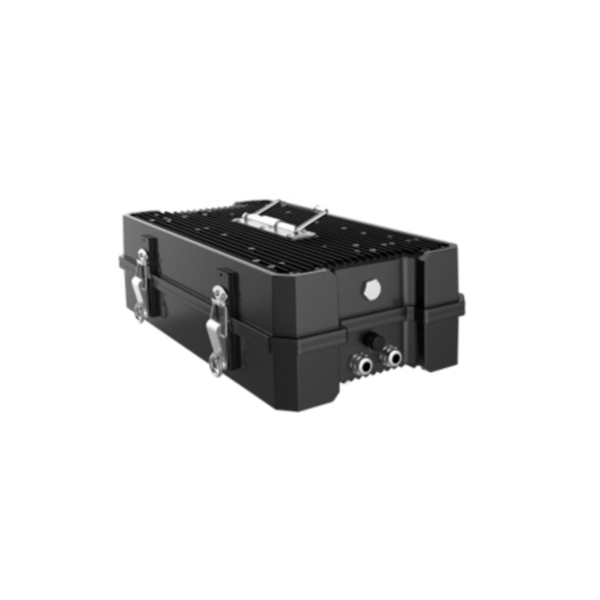

Offering flexible mounting arrangements, the IP66 control gear unit can be trunnion or remote mounted.
-
Dimensions - Wiring Diagrams
-
-
Photometric Data
-
-
Model No. & Technical Specification
Model No. Description Power Lumens Colour Temp. CRI Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickModel No. FBC1057A1 Description Barcelona 1000W with A1 narrow asymmetric optic, DALI Power 1000 Lumens 140000 Colour Temp. 5700 CRI 70 Add to Enquiry Add Remove Remove Model No. FBC1057A2 Description Barcelona 1000W with A2 medium asymmetric optic, DALI Power 1000 Lumens 140000 Colour Temp. 5700 CRI 70 Add to Enquiry Add Remove Remove Model No. FBC1057A3 Description Barcelona 1000W with A3 wide asymmetric optic, DALI Power 1000 Lumens 160000 Colour Temp. 5700 CRI 70 Add to Enquiry Add Remove Remove Model No. FBC1257A1 Description Barcelona 1200W with A1 Narrow asymmetric Optic DALI Power 1200 Lumens 168000 Colour Temp. 5700 CRI 70 Add to Enquiry Add Remove Remove Model No. FBC1257A2 Description Barcelona 1200W with A2 medium asymmetric optic, DALI Power 1200 Lumens 168000 Colour Temp. 5700 CRI 70 Add to Enquiry Add Remove Remove Model No. FBC1257A3 Description Barcelona 1200W with A3 wide asymmetric optic, DALI Power 1200 Lumens 192000 Colour Temp. 5700 CRI 70 Add to Enquiry Add Remove Remove Code Methodology: FBC = Barcelona | 10 = Wattage | 57 = CCT | A1 = Optics
Variants Available:
Wattage - 10 = 1000w / 12 = 1200w
CCT - 57 = 5700K / 30 = 3000K / 40 = 4000k
Control Gear - 240v Remote Gear as standard / add TP for Tri Phase 415v (Note 415v model is Non-Dim as standard)

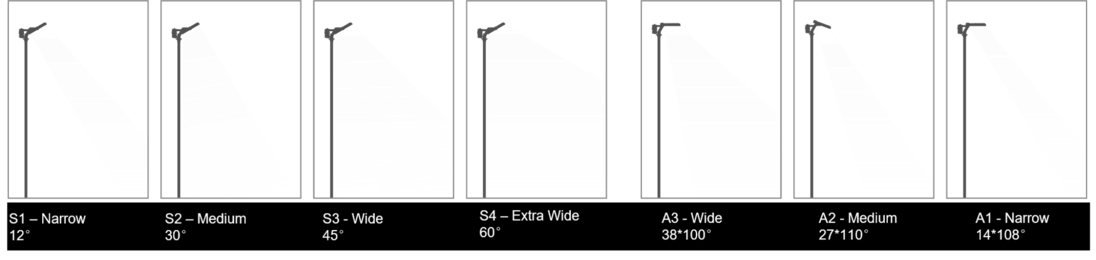

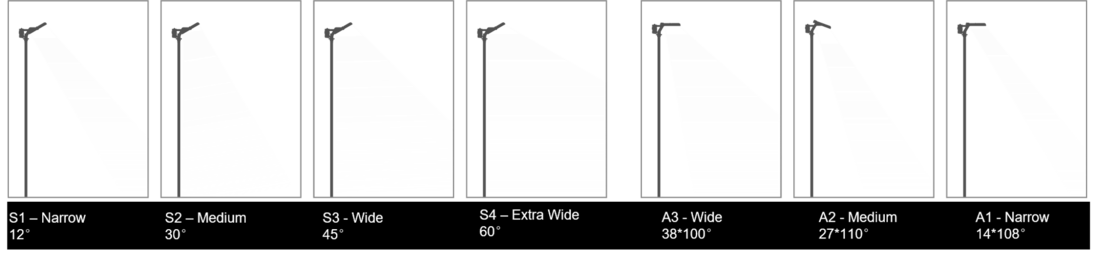

Optics - A1 Narrow / A2 Medium / A3 Wide / S1 Symmetrical 12° / S2 Symmetrical 30° / S3 Symmetrical 45° / S4 Symmetrical 60°
Add suffix: GS = Rear Glare Shield. FV = Front Visor.Alternate optics available on request
