• Medical LED Lighting

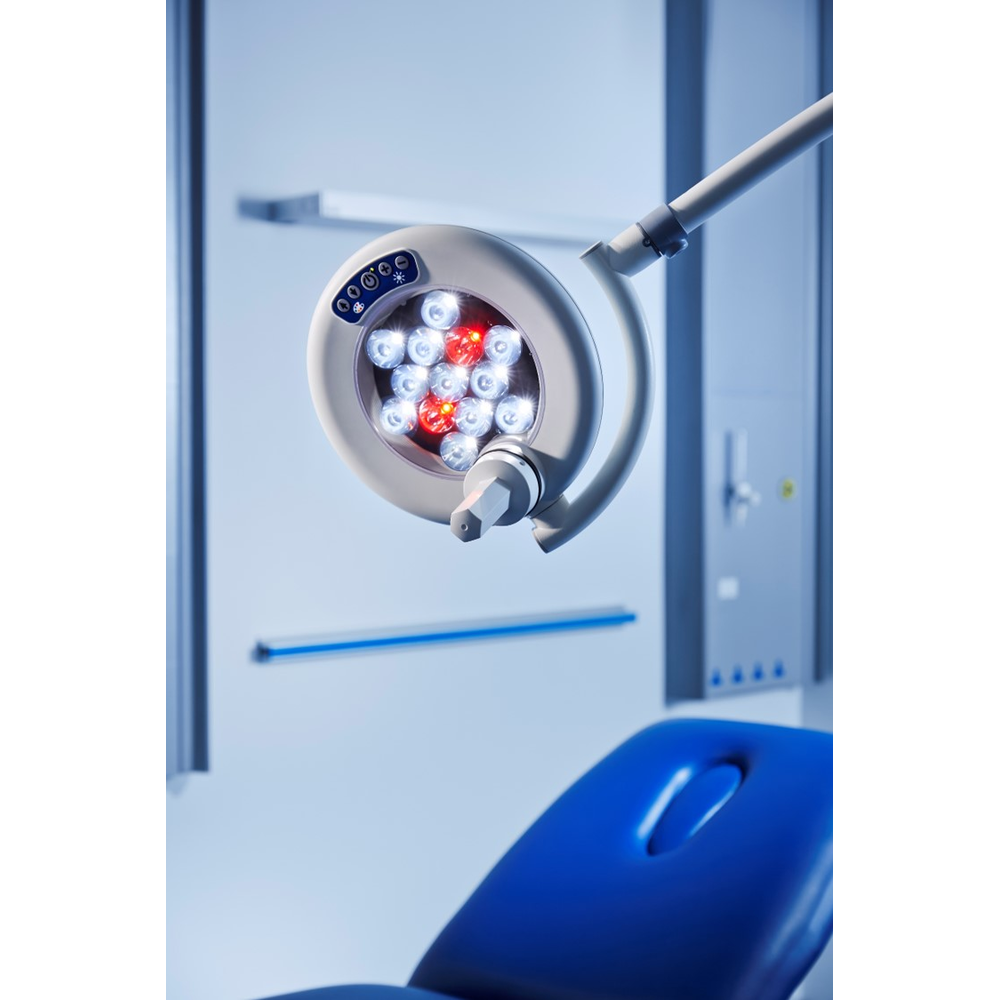

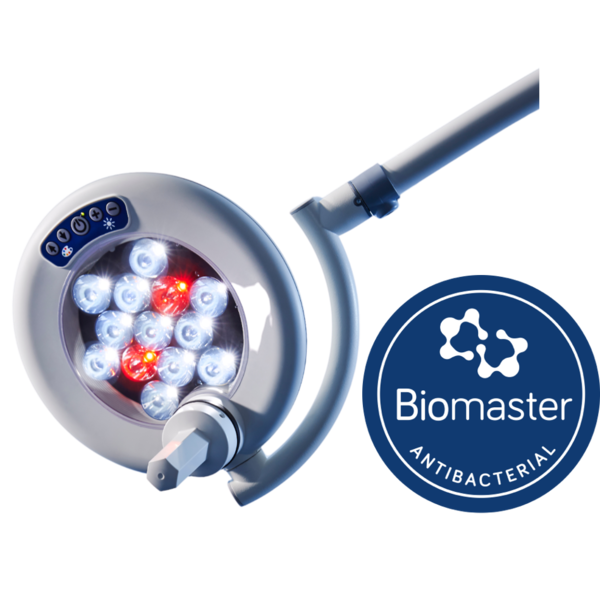

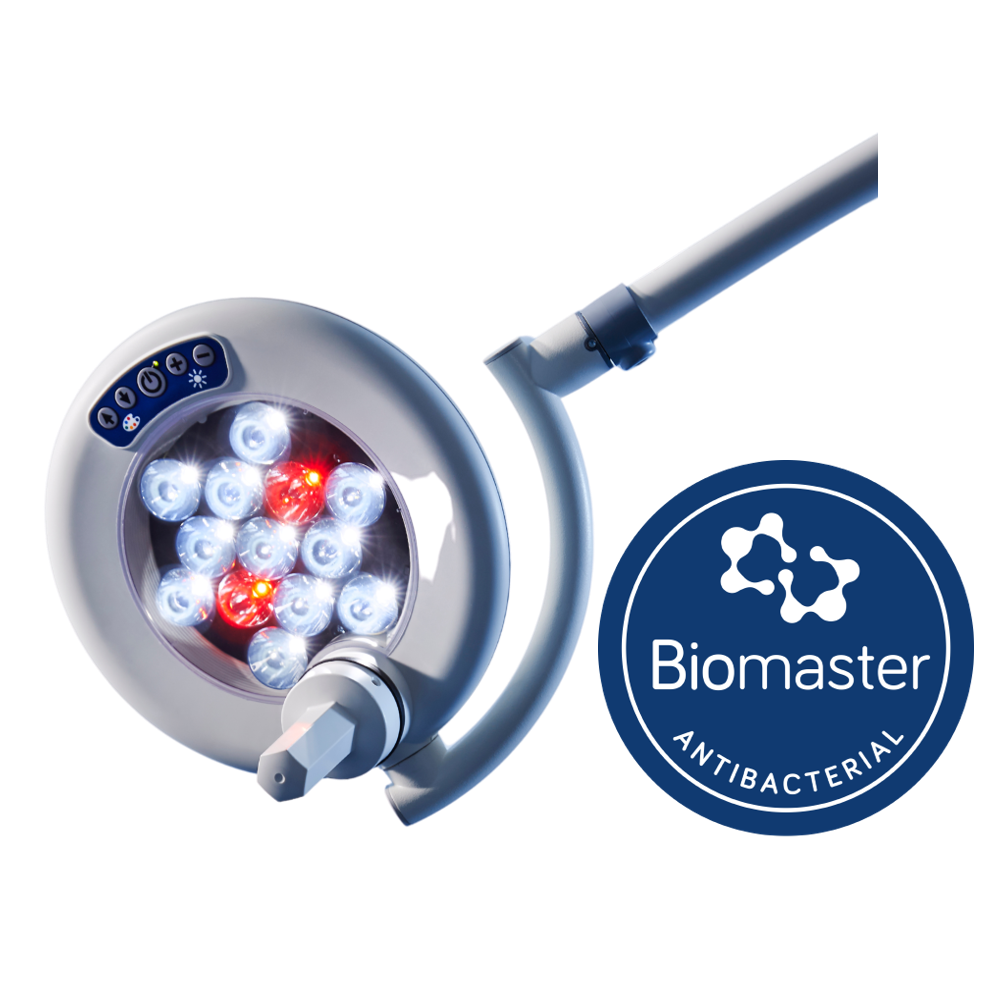

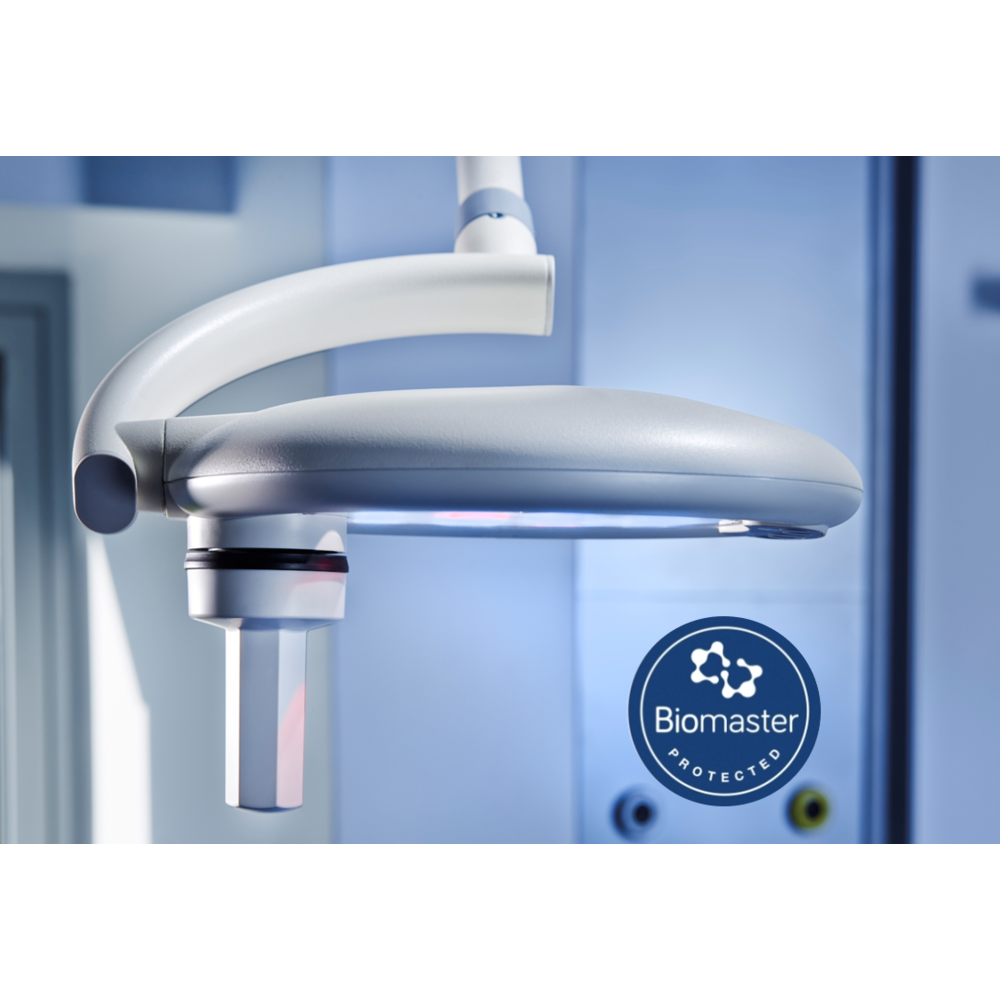

Astralite ALE10

LED HD Minor Surgery Light with Selectable Colour Temperature and Step Dimming

Astralite® uses HD-LED® technology, a breakthrough innovation with vastly better performance than standard definition LED technology. The benefits of this technology include reduced eye strain, ensuring all colours are strong and vibrant and making the task easier to distinguish small differences in tissue.

Explore Minor Surgical Lighting by Brandon Medical

Application

♦ Minimise Infections Anti-microbial additives are used to destroy harmful bacteria. The surfaces of the Astralite® range are designed to be smooth and continuous to ensure they are easy to wipe clean.

♦ Fat Beam Illumination Higher flux ensures the biggest beams of light in the industry, with larger illumination fields and more light across the full width of the illuminated area.

♦ Red Balance Control Astralite® offers the highest R9 red colour rendition, R9 >95 in the market today which provides optimal visualisation of red tissues.

♦ Full Colour Spectrum Rendition Astralite® offers a Ra >95 which ensures an exceptionally high quality white light and ensures all colours are strong and vibrant reducing the strain on the human eye.

♦ Easy to clean and maintenance free design with a fully enclosed light head, smooth surfaces, durable LED technology and high quality materials.

Design Specifications

  • 100,000 lux @ 1m with unlimited 360° rotation

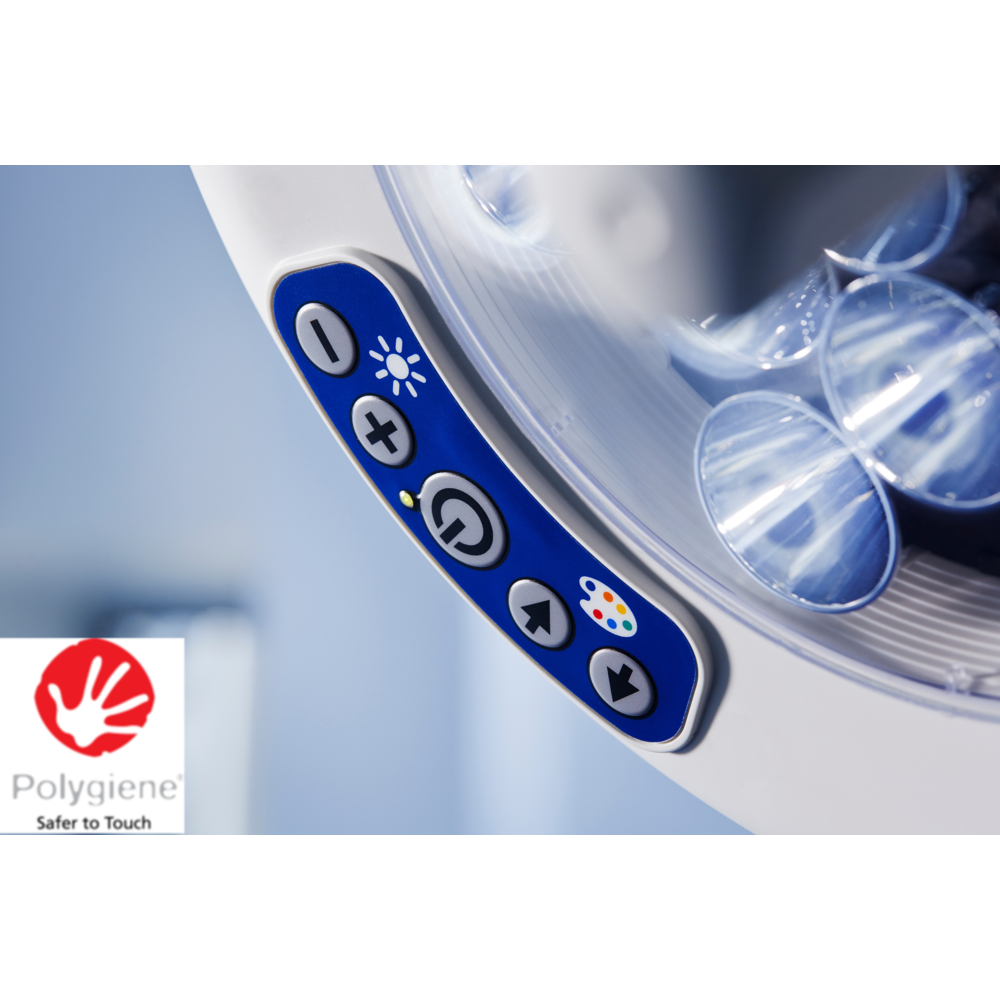

  • Focusable beam via a handle twist mechanism with 8 step dimming control

  • 6 step adjustable colour with Red Balance Control

  • LED life 50,000 hours. Equates to more than 20 years normal use

  • Large 250mm diameter light field with 70-140cm working distance

  • Available Options

    • Re-sterilisable handle (sterilisable at 137°C)

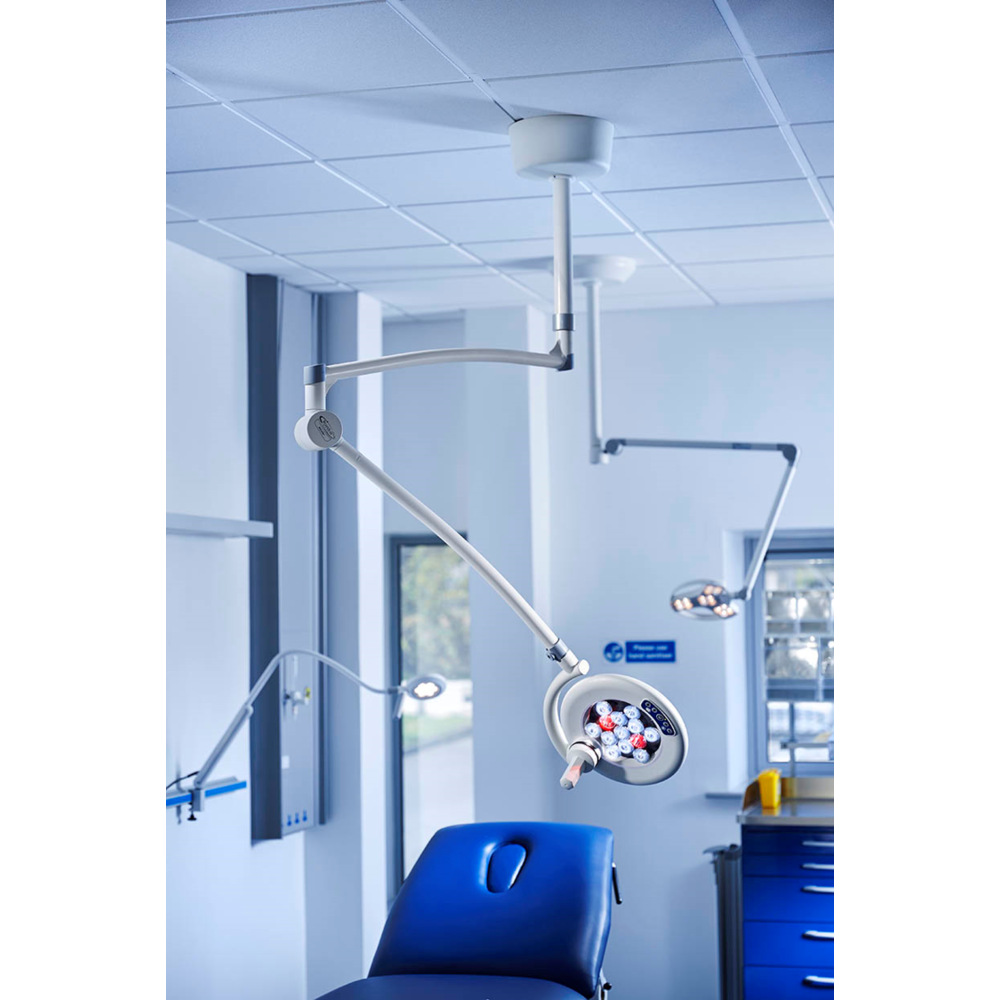

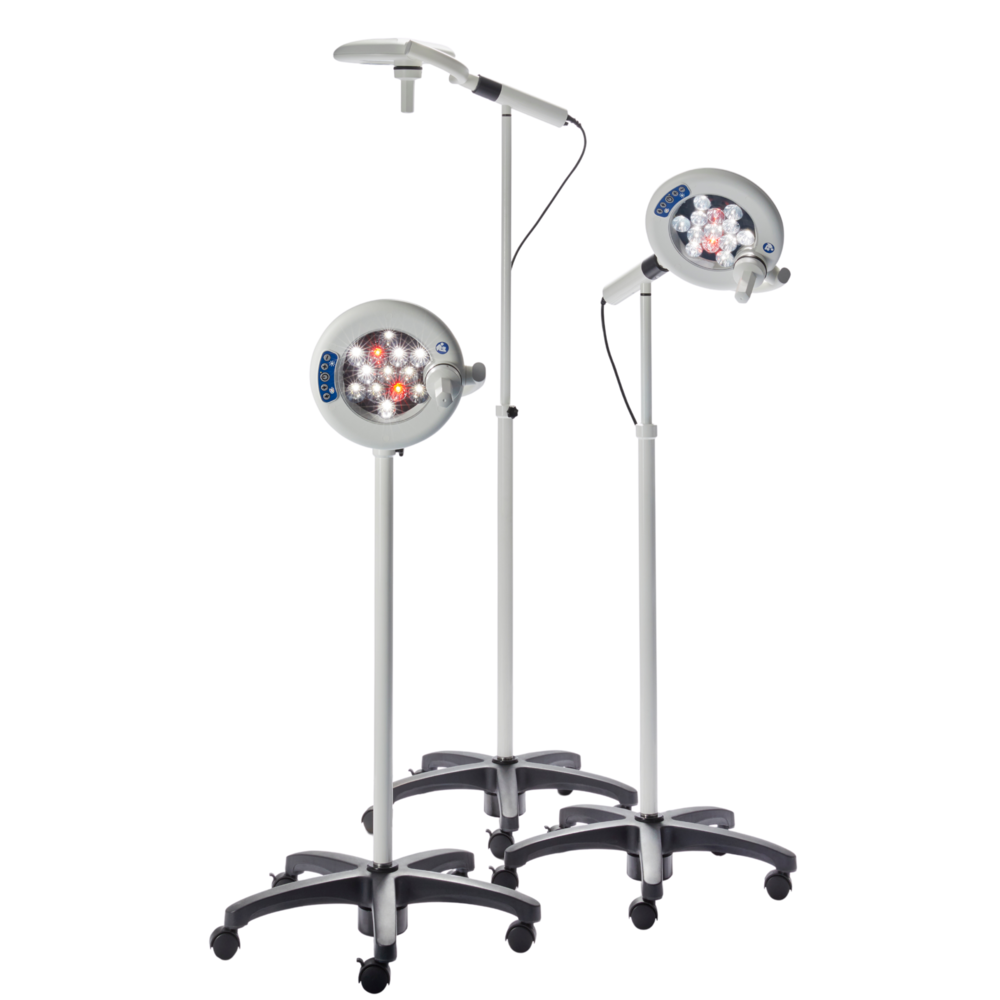

    • Ceiling / Wall / Trolley mounting options

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Body Colour CCT Power CRI R9 Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.ALE10CJ DescriptionAstralite® ceiling mounted minor procedure luminaire, Biomaster anti-microbial integrated, selectable CCT from 3100K-5000K (6 steps) Body Colourwhite CCT3100/5000 Power32 CRI95 R995 Mass19 Add to Enquiry Add Remove Remove
    Model No.ALE10MO DescriptionAstralite® mobile minor procedure luminaire, Biomaster anti-microbial integrated, selectable CCT from 3100K-5000K (6 steps) Body Colourwhite CCT3100/5000 Power32 CRI95 R995 Mass19 Add to Enquiry Add Remove Remove
    Model No.ALE10WJ DescriptionAstralite® wall mounted minor procedure luminaire, Biomaster anti-microbial integrated, selectable CCT from 3100K-5000K (6 steps) Body Colourwhite CCT3100/5000 Power32 CRI95 R995 Mass19 Add to Enquiry Add Remove Remove

    Astralite ALE10 is entered in the ARTG, 234264

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
