• Linear LED Projects

Arrow X R45

LED Linear Profile

Arrow X™ is a linear LED lighting system designed and manufactured in Australia. Incorporating Tridonic drivers and class leading LED technology, the Arrow X™ range is designed to complement modern interior architecture.

Arrow X™ is available in suspended, surface mounted and recessed models.

Application

The Arrow X ™ recessed linear LED profile is suited to a large range of applications. The smooth and sleek aesthetic has been engineered to feel right at home in healthcare facilities, educational installations and commercial workspaces.

The Arrow X™ Projects range is manufactured to the exact specifications of your project.



Design Specifications

  • High output linear LED light engine technology

  • Samsung LED technology, LED lifetime L80/B10 @ 81,000 hours

  • Powered by Tridonic integral driver design

  • Engineered for ultimate modularity to suit project requirements

  • Available Options

    • CRI 90
    • DALI2 driver
    • DALI type 8 driver
    • Casambi wireless control
    • 3000K, 3500K and tuneable white CCT


  • 140lm/w efficiency
  • Quick connect locking device for accurate end to end mounting
  • Opalised low glare diffuser
  • Spot free diffuser and end-cap design
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

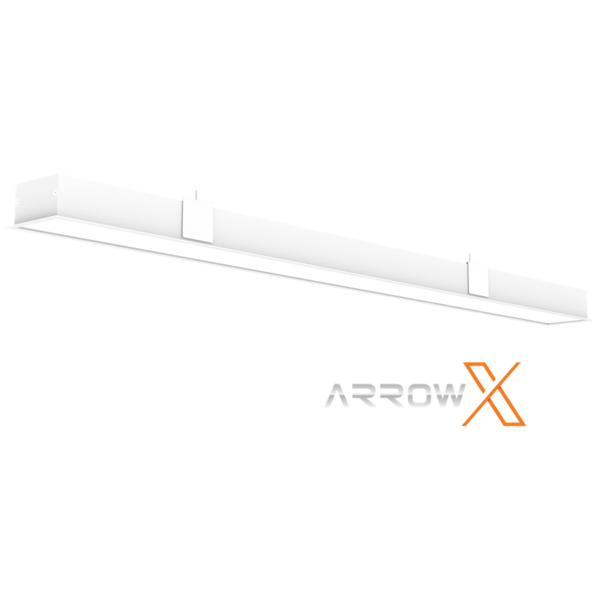

The Arrow X™ recessed linear LED profile range offers all the features of the suspended and surface mounted variants in a profile specifically designed for a smooth, sleek aesthetic for modern architectural interiors.

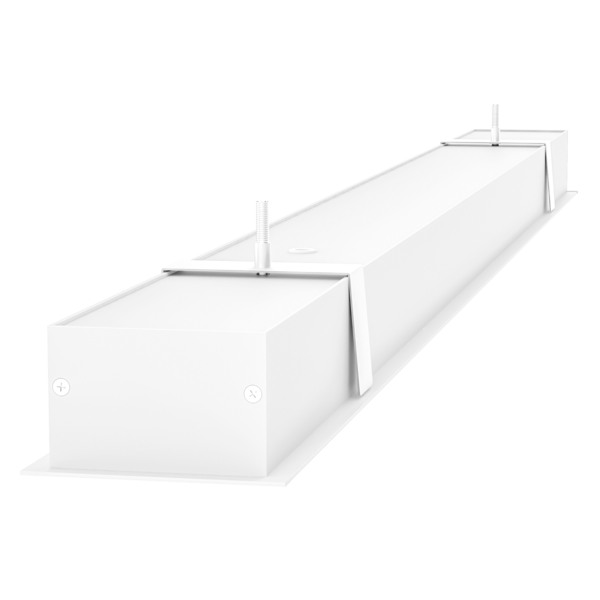

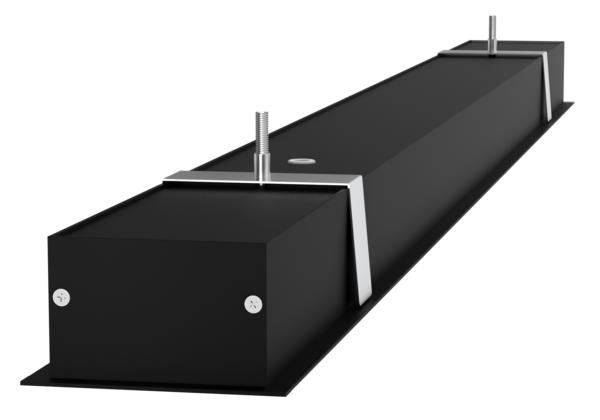

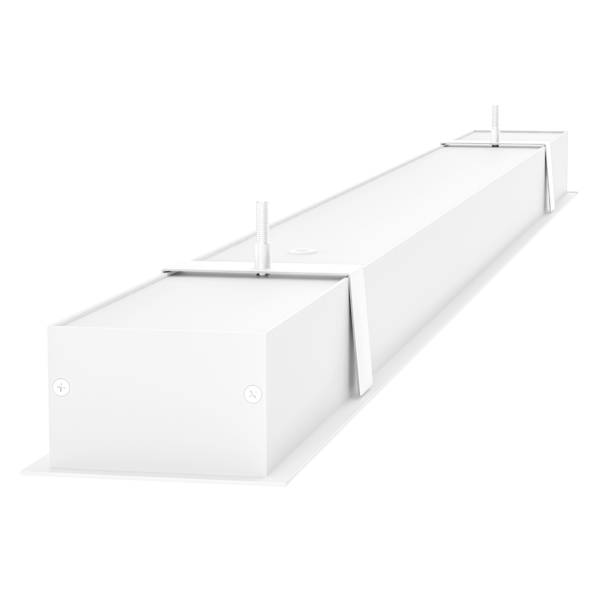

Offering a simple and secure mounting clip design, the Arrow X™ recessed linear LED profile models have been engineered with the installer in mind.

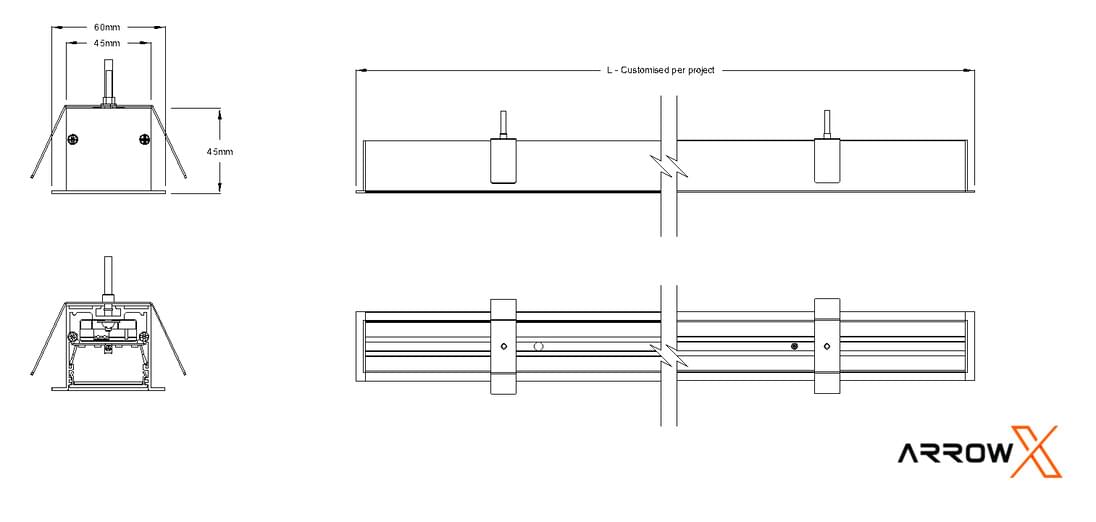

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
