• Commercial LED Vandalproof

Lithgow

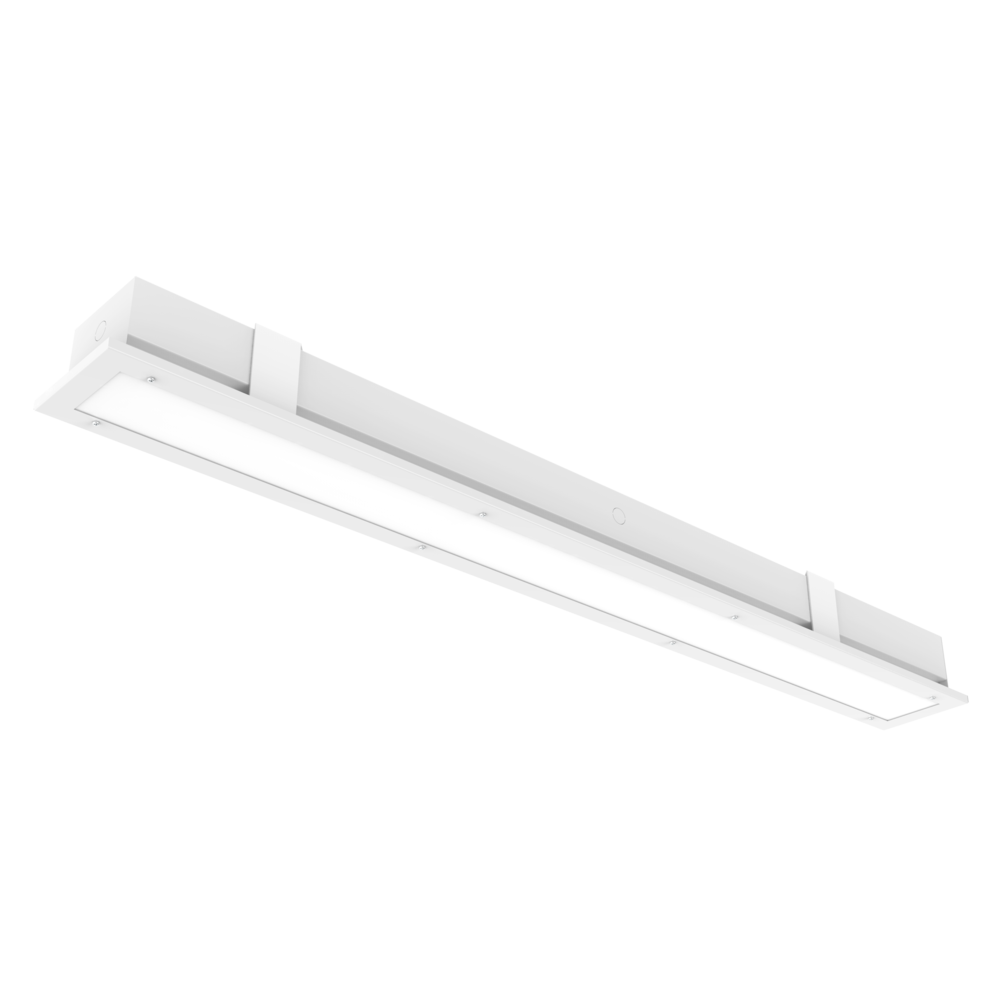

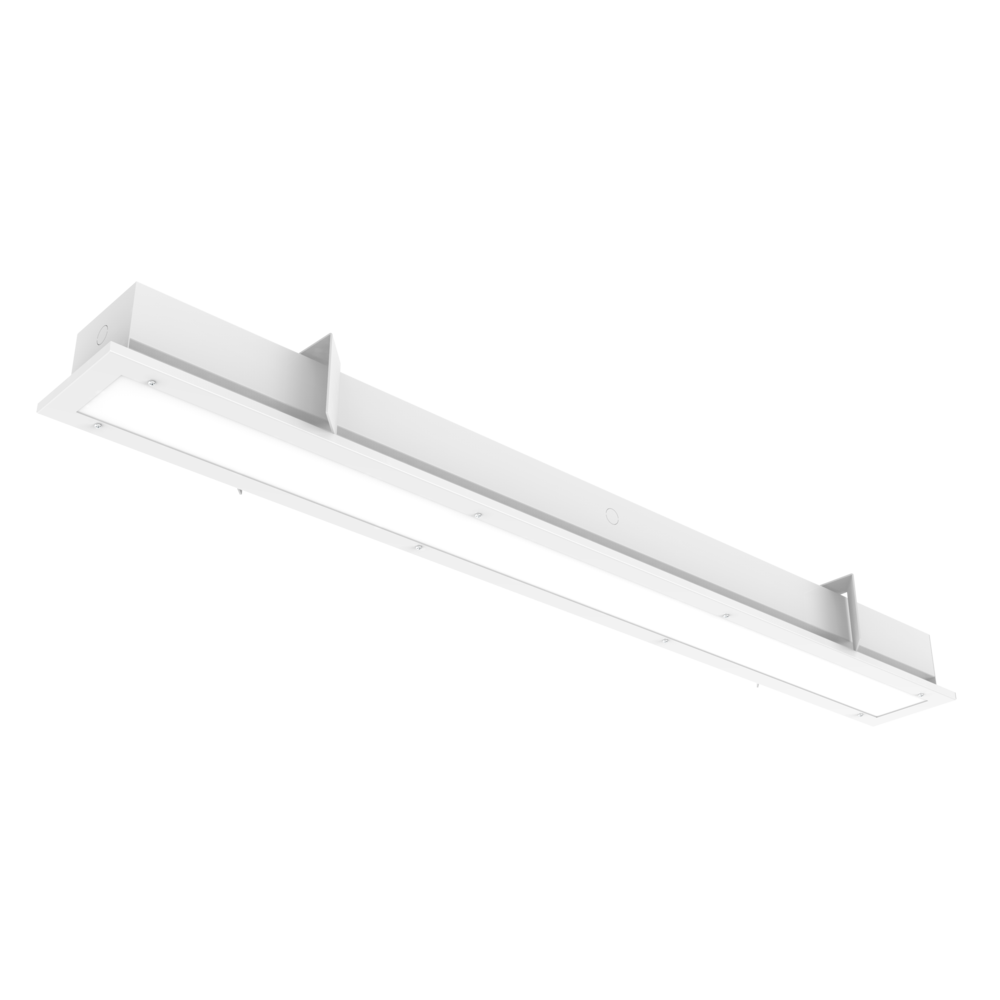

Vandalproof IK10 / IP44 Recessed Concrete / Plaster LED Troffer

Lithgow is a vandalproof LED fixture designed for use in high security environments where absolute strength is required. Designed with high quality anti-tamper proof fixings suited to high security applications. Customised solutions available to suit specific project requirements.

Application

Designed specifically for high security applications:

  • Custodial
  • Mental health facilities
  • Laboratories
  • Storerooms
  • School halls
  • High security installations

Design Specifications

  • Heavy duty steel body construction, powder coated white (RAL9010) and fitted with IK10 polycarbonate diffuser

  • Anti-tamper proof fixings

  • CRI 80, 4000K CCT as standard

    L70 > 50,000 hours

  • Tridonic flicker free driver as standard

  • Plaster and concrete mounting options

  • Available Options

    • 3000K CCT
    • Integrated night light
    • Integrated emergency version

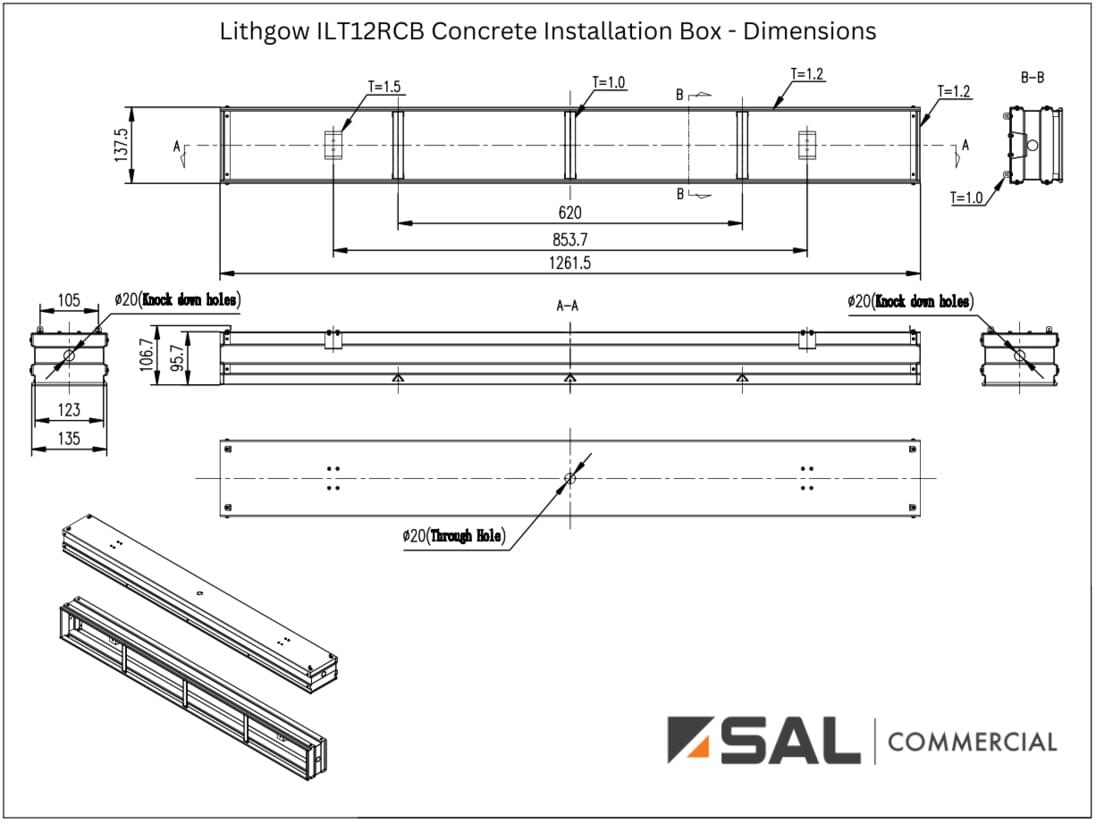

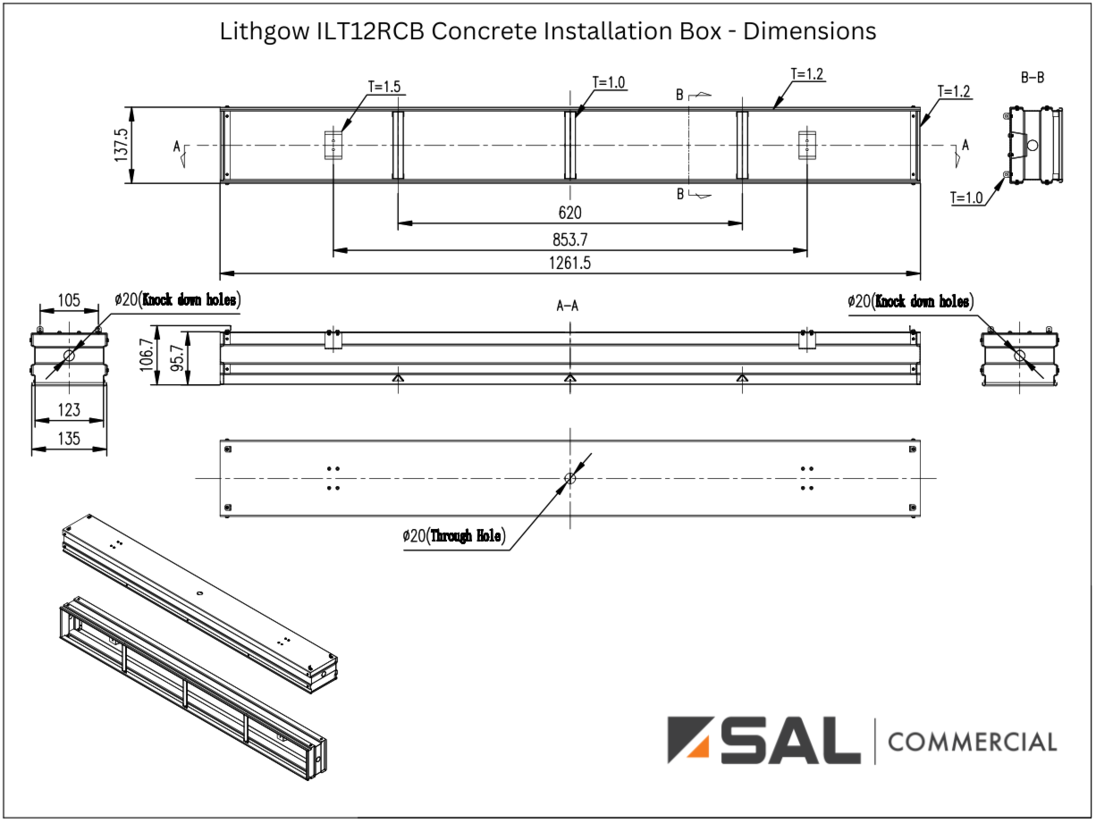

    • Recessed concrete box ILT12RCB

  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT

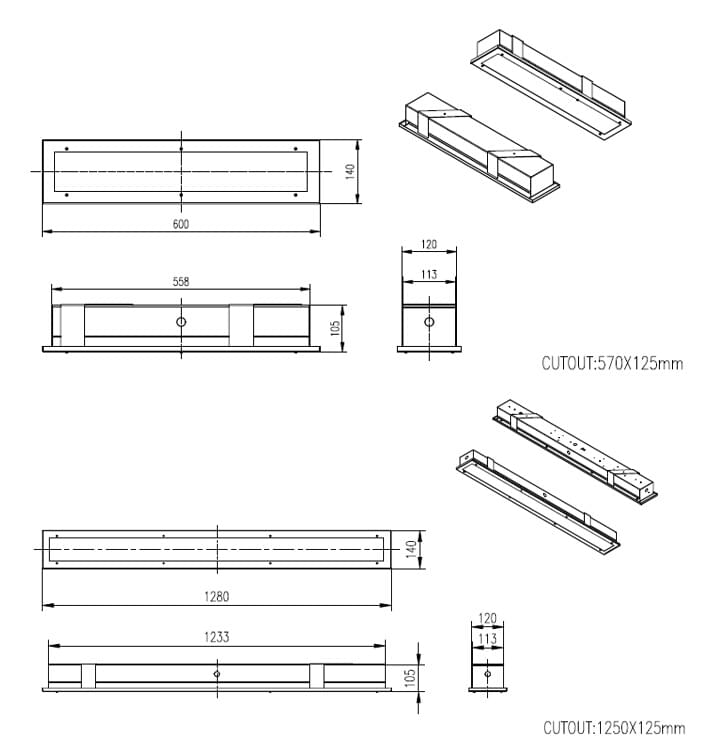

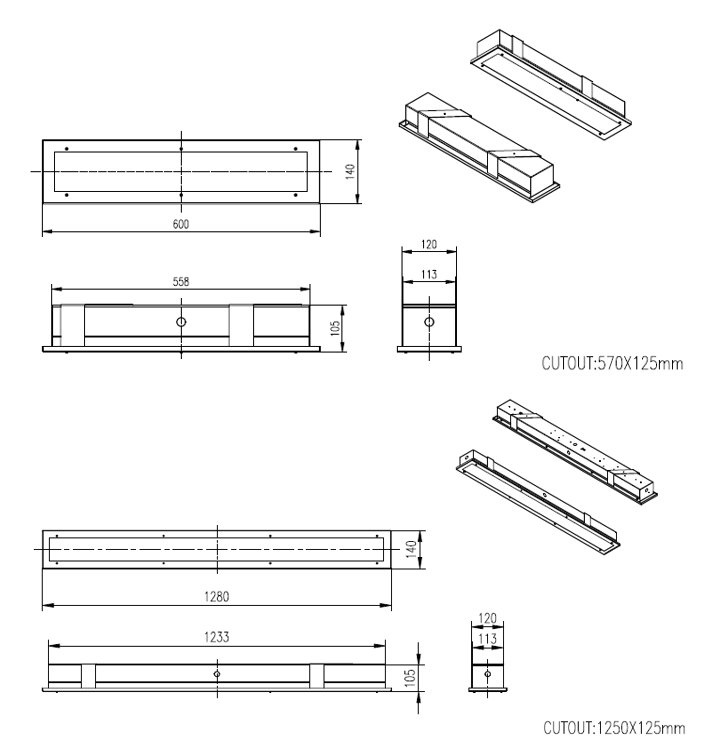

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer DALI YES

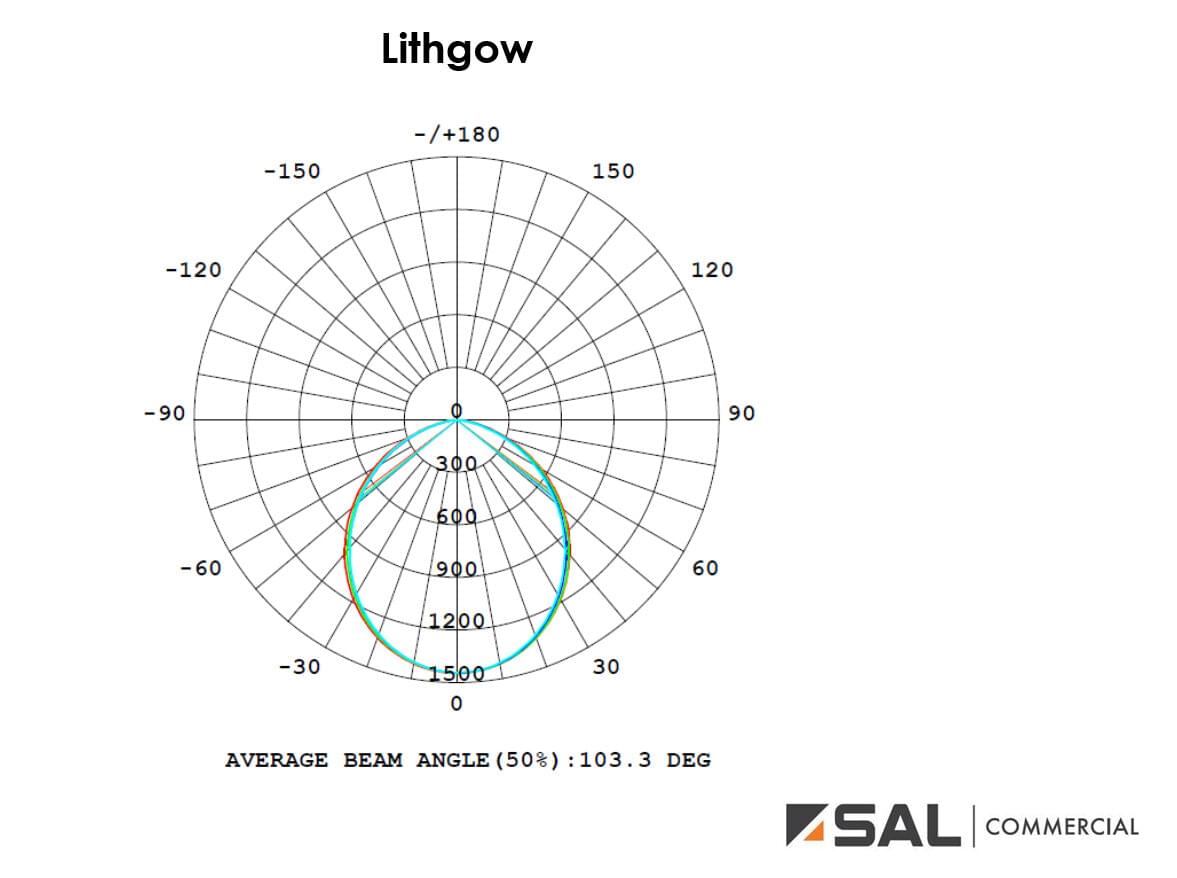

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT CRI IK Rating Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.CLG061930N DescriptionLithgow IK10 Recessed Plaster c/w Integral Non-Dimmable Driver & Anti-Tamper Screws Power19 Lumens1800 CCT3000 CRI80 IK Rating10 Dim600(L) x 140(W) Add to Enquiry Add Remove Remove
    Model No.CLG061930D DescriptionLithgow IK10 Recessed Plaster c/w Integral DALI Driver & Anti-Tamper Screws Power19 Lumens1800 CCT3000 CRI80 IK Rating10 Dim600(L) x 140(W) Add to Enquiry Add Remove Remove
    Model No.CLG061940N DescriptionLithgow IK10 Recessed Plaster c/w Integral Non-Dimmable Driver & Anti-Tamper Screws Power19 Lumens1800 CCT4000 CRI80 IK Rating10 Dim600(L) x 140(W) Add to Enquiry Add Remove Remove
    Model No.CLG061940D DescriptionLithgow IK10 Recessed Plaster c/w Integral DALI Driver & Anti-Tamper Screws Power19 Lumens1800 CCT4000 CRI80 IK Rating10 Dim600(L) x 140(W) Add to Enquiry Add Remove Remove
    Model No.CLG122830N DescriptionLithgow IK10 Recessed Plaster c/w Integral Non-Dimmable Driver & Anti-Tamper Screws Power28 Lumens2800 CCT3000 CRI80 IK Rating10 Dim1280(L) x 140(W) Add to Enquiry Add Remove Remove
    Model No.CLG122830NEM DescriptionLithgow IK10 Recessed Plaster c/w Integral Non-Dimmable Driver / Single Point Emergency & Anti-Tamper Screws Power28 Lumens2800 CCT3000 CRI80 IK Rating10 Dim1280(L) x 140(W) Add to Enquiry Add Remove Remove
    Model No.CLG122840N DescriptionLithgow IK10 Recessed Plaster c/w Integral Non-Dimmable Driver & Anti-Tamper Screws Power28 Lumens2800 CCT4000 CRI80 IK Rating10 Dim1280(L) x 140(W) Add to Enquiry Add Remove Remove
    Model No.CLG122840NEM DescriptionLithgow IK10 Recessed Plaster c/w Integral Non-Dimmable Driver / Single Point Emergency & Anti-Tamper Screws Power28 Lumens2800 CCT4000 CRI80 IK Rating10 Dim1280(L) x 140(W) Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
